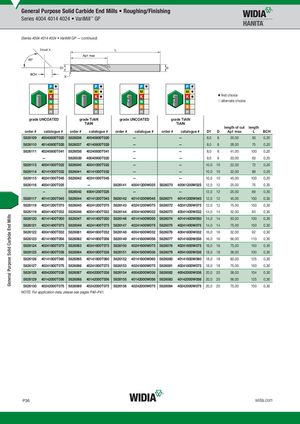

(Series 4004 4014 4024 • VariMill GP continued)
Detail X
first choice alternate choice
grade UNCOATEDUNCOATED - .. grade TiAlNTiAlN grade UNCOATEDUNCOATED - .. grade TiAlNTiAlN
TiAlN TiAlN length of cut length
| order # catalogue # | order # catalogue # | order # catalogue # | order # catalogue # | D1 | D | Ap1 max | L | BCH | ||
| 5826109 40040800T020 | 5826036 40040800T020 | 8,0 | 8 | 20,00 | 50 | 0,20 | ||||
| 5826110 40140800T028 | 5826037 40140800T028 | 8,0 | 8 | 28,00 | 75 | 0,20 | ||||
| 5826111 40240800T041 | 5826038 40240800T041 | 8,0 | 8 | 41,00 | 100 | 0,20 |
- 5826039 40040900T020
- 9,0 9 20,00 63 0,20
| 5826113 40041000T022 | 5826040 40041000T022 | 10,0 | 10 | 22,00 | 72 | 0,20 | |||||
| 5826114 40141000T032 | 5826041 40141000T032 | 10,0 | 10 | 32,00 | 89 | 0,20 | |||||
| 5826115 40241000T045 | 5826042 40241000T045 | 10,0 | 10 | 45,00 | 100 | 0,20 | |||||
| 5826116 40041200T025 | 5826141 40041200W025 | 5826070 40041200W025 | 12,0 | 12 | 25,00 | 75 | 0,30 |
- 5826043 40041200T025
- 12,0 12 25,00 89 0,30
| 5826117 40141200T045 | 5826044 40141200T045 | 5826142 40141200W045 | 5826071 40141200W045 | 12,0 | 12 | 45,00 | 100 | 0,30 |
| 5826118 40241200T075 | 5826045 40241200T075 | 5826143 40241200W075 | 5826072 40241200W075 | 12,0 | 12 | 75,00 | 150 | 0,30 |
| 5826119 40041400T032 | 5826046 40041400T032 | 5826144 40041400W032 | 5826073 40041400W032 | 14,0 | 14 | 32,00 | 83 | 0,30 |
| 5826120 40141400T050 | 5826047 40141400T050 | 5826146 40141400W050 | 5826074 40141400W050 | 14,0 | 14 | 50,00 | 100 | 0,30 |
| 5826121 40241400T075 | 5826049 40241400T075 | 5826147 40241400W075 | 5826075 40241400W075 | 14,0 | 14 | 75,00 | 150 | 0,30 |
| 5826122 40041600T032 | 5826061 40041600T032 | 5826148 40041600W032 | 5826076 40041600W032 | 16,0 | 16 | 32,00 | 92 | 0,30 |
| 5826123 40141600T056 | 5826062 40141600T056 | 5826149 40141600W056 | 5826077 40141600W056 | 16,0 | 16 | 56,00 | 110 | 0,30 |
| 5826124 40241600T075 | 5826063 40241600T075 | 5826150 40241600W075 | 5826078 40241600W075 | 16,0 | 16 | 75,00 | 150 | 0,30 |
| 5826125 40041800T038 | 5826064 40041800T038 | 5826151 40041800W038 | 5826079 40041800W038 | 18,0 | 18 | 38,00 | 100 | 0,30 |
| 5826126 40141800T060 | 5826065 40141800T060 | 5826152 40141800W060 | 5826080 40141800W060 | 18,0 | 18 | 60,00 | 125 | 0,30 |
| 5826127 40241800T075 | 5826066 40241800T075 | 5826153 40241800W075 | 5826081 40241800W075 | 18,0 | 18 | 75,00 | 150 | 0,30 |
| 5826128 40042000T038 | 5826067 40042000T038 | 5826154 40042000W038 | 5826082 40042000W038 | 20,0 | 20 | 38,00 | 104 | 0,30 |
| 5826129 40142000T056 | 5826068 40142000T056 | 5826155 40142000W056 | 5826083 40142000W056 | 20,0 | 20 | 56,00 | 125 | 0,30 |
| 5826130 40242000T075 | 5826069 40242000T075 | 5826156 40242000W075 | 5826084 40242000W075 | 20,0 | 20 | 75,00 | 150 | 0,30 |
NOTE: For application data, please see pages P40–P41.
