- Centre cutting.
- Chamfered corners.
- Standard items listed. Additional styles and coatings made-to-order.
Detail X

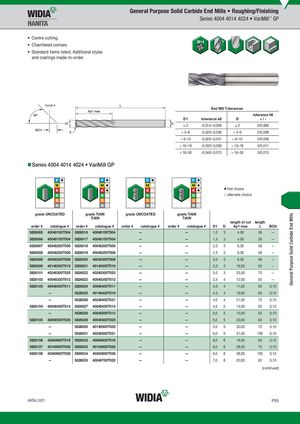

Series 4004 4014 4024 VariMill GP
End Mill Tolerances tolerance h6
| D1 | tolerance e8 | D | + / - | |
| ) 3 | -0,014/-0,028 | ) 3 | 0/0,006 | |
| > 3–6 | -0,020/-0,038 | > 3–6 | 0/0,008 | |
| > 6–10 | -0,025/-0,047 | > 6–10 | 0/0,009 | |
| > 10–18 | -0,032/-0,059 | > 10–18 | 0/0,011 | |
| > 18–30 | -0,040/-0,073 | > 18–30 | 0/0,013 |
first choice alternate choice
grade UNCOATEDUNCOATED - .. grade TiAlNTiAlN grade UNCOATEDUNCOATED - .. grade TiAlNTiAlN
TiAlN TiAlN length of cut length
| order # catalogue # | order # catalogue # | order # catalogue # | order # catalogue # | D1 | D | Ap1 max | L | BCH |
| 5826085 40040100T004 | 5826016 40040100T004 | 1,0 | 3 | 4,00 | 38 | |||
| 5826086 40040150T004 | 5826017 40040150T004 | 1,5 | 3 | 4,00 | 38 | |||
| 5826087 40040200T006 | 5826018 40040200T006 | 2,0 | 3 | 6,30 | 38 | |||
| 5826088 40040250T006 | 5826019 40040250T006 | 2,5 | 3 | 6,30 | 38 | |||
| 5826089 40040300T009 | 5826020 40040300T009 | 3,0 | 3 | 9,50 | 38 | |||
| 5826090 40140300T019 | 5826021 40140300T019 | 3,0 | 3 | 19,00 | 63 | |||
| 5826101 40240300T025 | 5826022 40240300T025 | 3,0 | 3 | 25,00 | 75 | |||
| 5826102 40040350T012 | 5826023 40040350T012 | 3,5 | 4 | 12,00 | 50 | |||
| 5826103 40040400T011 | 5826024 40040400T011 | 4,0 | 4 | 11,00 | 50 | 0,10 |
- 5826025 40140400T019
- 4,0 4 19,00 63 0,10
- 5826026 40240400T031
- 4,0 4 31,00 75 0,10
5826104 40040450T014 5826027 40040450T014 4,5 5 14,00 50 0,10
- 5826028 40040500T013
- 5,0 5 13,00 50 0,10
5826105 40040500T020 5826029 40040500T020 5,0 5 20,00 63 0,10
- 5826030 40140500T030
- 5,0 5 30,00 75 0,10
- 5826031 40240500T031
- 5,0 5 31,00 100 0,10
| 5826106 40040600T016 | 5826032 40040600T016 | 6,0 | 6 | 16,00 | 50 | 0,10 | ||
| 5826107 40140600T028 | 5826033 40140600T028 | 6,0 | 6 | 28,00 | 75 | 0,10 | ||
| 5826108 40240600T038 | 5826034 40240600T038 | 6,0 | 6 | 38,00 | 100 | 0,10 |
- 5826035 40040700T020
- 7,0 8 20,00 63 0,10
(continued)
