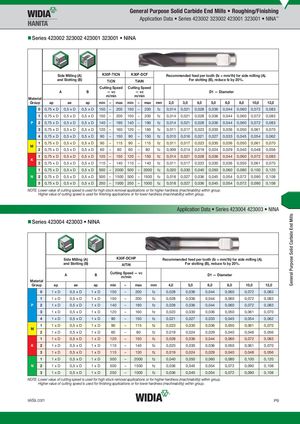

Application Data • Series 423002 323002 423001 323001 • NINA™
- Series 423002 323002 423001 323001 • NINA
| Side Milling (A) | K30F-TICN | K30F-DCF | Recommended feed per tooth (fz = mm/th) for side milling (A). | ||
| and Slotting (B) | TiCN | TiAlN | For slotting (B), reduce fz by 20%. |
Cutting Speed Cutting Speed
A B — vc — vc D1 — Diameter
m/min m/min Material
| Group | ap ae | ap | min | – | max | min | – | max | mm | 2,0 | 3,0 | 4,0 | 5,0 | 6,0 | 8,0 | 10,0 | 12,0 | ||
| 0 | 0,75 x D | 0,5 x D | 0,5 x D | 150 | – | 200 | 150 | – | 200 | fz | 0,014 | 0,021 | 0,028 | 0,036 | 0,044 | 0,060 | 0,072 | 0,083 | |
| 1 | 0,75 x D | 0,5 x D | 0,5 x D | 150 | – | 200 | 150 | – | 200 | fz | 0,014 | 0,021 | 0,028 | 0,036 | 0,044 | 0,060 | 0,072 | 0,083 | |
| P | 2 | 0,75 x D | 0,5 x D | 0,5 x D | 140 | – | 190 | 140 | – | 190 | fz | 0,014 | 0,021 | 0,028 | 0,036 | 0,044 | 0,060 | 0,072 | 0,083 |
| 3 | 0,75 x D | 0,5 x D | 0,5 x D | 120 | – | 160 | 120 | – | 160 | fz | 0,011 | 0,017 | 0,023 | 0,030 | 0,036 | 0,050 | 0,061 | 0,070 | |
| 4 | 0,75 x D | 0,5 x D | 0,5 x D | 90 | – | 150 | 90 | – | 150 | fz | 0,010 | 0,016 | 0,021 | 0,027 | 0,033 | 0,045 | 0,054 | 0,062 | |
| 1 | 0,75 x D | 0,5 x D | 0,5 x D | 90 | – | 115 | 90 | – | 115 | fz | 0,011 | 0,017 | 0,023 | 0,030 | 0,036 | 0,050 | 0,061 | 0,070 |
M
| 2 | 0,75 x D | 0,5 x D | 0,5 x D | 60 | – | 80 | 60 | – | 80 | fz | 0,009 | 0,014 | 0,019 | 0,024 | 0,029 | 0,040 | 0,048 | 0,056 |
| 1 | 0,75 x D | 0,5 x D | 0,5 x D | 120 | – | 150 | 120 | – | 150 | fz | 0,014 | 0,021 | 0,028 | 0,036 | 0,044 | 0,060 | 0,072 | 0,083 |
K
| 2 | 0,75 x D | 0,5 x D | 0,5 x D | 110 | – | 140 | 110 | – | 140 | fz | 0,011 | 0,017 | 0,023 | 0,030 | 0,036 | 0,050 | 0,061 | 0,070 | |
| 1 | 0,75 x D | 0,5 x D | 0,5 x D | 500 | – | 2000 | 500 | – | 2000 | fz | 0,020 | 0,030 | 0,040 | 0,050 | 0,060 | 0,080 | 0,100 | 0,120 | |
| N | 2 | 0,75 x D | 0,5 x D | 0,5 x D | 500 | – | 1500 | 500 | – | 1500 | fz | 0,018 | 0,027 | 0,036 | 0,045 | 0,054 | 0,072 | 0,090 | 0,108 |
| 5 | 0,75 x D | 0,5 x D | 0,5 x D | 250 | – | 1000 | 250 | – | 1000 | fz | 0,018 | 0,027 | 0,036 | 0,045 | 0,054 | 0,072 | 0,090 | 0,108 |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for fi nishing applications or for lower hardness (machinability) within group.
Application Data • Series 423004 423003 • NINA
- Series 423004 423003 • NINA
Side Milling (A) K30F-DCHP Recommended feed per tooth (fz = mm/th) for side milling (A).
and Slotting (B) AlTiN For slotting (B), reduce fz by 20%.
Cutting Speed — vc
A B D1 — Diameter
m/min Material
| Group | ap | ae | ap | min | – | max | mm | 4,0 | 5,0 | 6,0 | 8,0 | 10,0 | 12,0 | |
| 0 | 1 x D | 0,5 x D | 1 x D | 150 | – | 200 | fz | 0,028 | 0,036 | 0,044 | 0,060 | 0,072 | 0,083 | |
| 1 | 1 x D | 0,5 x D | 1 x D | 150 | – | 200 | fz | 0,028 | 0,036 | 0,044 | 0,060 | 0,072 | 0,083 | |
| P | 2 | 1 x D | 0,5 x D | 1 x D | 140 | – | 190 | fz | 0,028 | 0,036 | 0,044 | 0,060 | 0,072 | 0,083 |
| 3 | 1 x D | 0,5 x D | 1 x D | 120 | – | 160 | fz | 0,023 | 0,030 | 0,036 | 0,050 | 0,061 | 0,070 | |
| 4 | 1 x D | 0,5 x D | 1 x D | 90 | – | 150 | fz | 0,021 | 0,027 | 0,033 | 0,045 | 0,054 | 0,062 | |
| 1 | 1 x D | 0,5 x D | 1 x D | 90 | – | 115 | fz | 0,023 | 0,030 | 0,036 | 0,050 | 0,061 | 0,070 |
M
| 2 | 1 x D | 0,5 x D | 1 x D | 60 | – | 80 | fz | 0,019 | 0,024 | 0,029 | 0,040 | 0,048 | 0,056 | |
| 1 | 1 x D | 0,5 x D | 1 x D | 120 | – | 150 | fz | 0,028 | 0,036 | 0,044 | 0,060 | 0,072 | 0,083 | |
| K | 2 | 1 x D | 0,5 x D | 1 x D | 110 | – | 140 | fz | 0,023 | 0,030 | 0,036 | 0,050 | 0,061 | 0,070 |
| 3 | 1 x D | 0,5 x D | 1 x D | 110 | – | 130 | fz | 0,019 | 0,024 | 0,029 | 0,040 | 0,048 | 0,056 | |
| 1 | 1 x D | 0,5 x D | 1 x D | 500 | – | 2000 | fz | 0,040 | 0,050 | 0,060 | 0,080 | 0,100 | 0,120 | |
| N | 2 | 1 x D | 0,5 x D | 1 x D | 500 | – | 1500 | fz | 0,036 | 0,045 | 0,054 | 0,072 | 0,090 | 0,108 |
| 3 | 1 x D | 0,5 x D | 1 x D | 250 | – | 1000 | fz | 0,036 | 0,045 | 0,054 | 0,072 | 0,090 | 0,108 |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for fi nishing applications or for lower hardness (machinability) within group.
