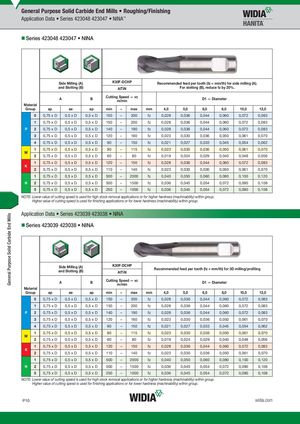

Application Data • Series 423048 423047 • NINA™
- Series 423048 423047 • NINA
Side Milling (A) K30F-DCHP Recommended feed per tooth (fz = mm/th) for side milling (A).
and Slotting (B) AlTiN For slotting (B), reduce fz by 20%.
Cutting Speed — vc
A B D1 — Diameter
m/min Material
| Group | ap ae | ap | min | – | max | mm | 4,0 | 5,0 | 6,0 | 8,0 | 10,0 | 12,0 | ||
| 0 | 0,75 x D | 0,5 x D | 0,5 x D | 150 | – | 200 | fz | 0,028 | 0,036 | 0,044 | 0,060 | 0,072 | 0,083 | |
| 1 | 0,75 x D | 0,5 x D | 0,5 x D | 150 | – | 200 | fz | 0,028 | 0,036 | 0,044 | 0,060 | 0,072 | 0,083 | |
| P | 2 | 0,75 x D | 0,5 x D | 0,5 x D | 140 | – | 190 | fz | 0,028 | 0,036 | 0,044 | 0,060 | 0,072 | 0,083 |
| 3 | 0,75 x D | 0,5 x D | 0,5 x D | 120 | – | 160 | fz | 0,023 | 0,030 | 0,036 | 0,050 | 0,061 | 0,070 | |
| 4 | 0,75 x D | 0,5 x D | 0,5 x D | 90 | – | 150 | fz | 0,021 | 0,027 | 0,033 | 0,045 | 0,054 | 0,062 | |
| 1 | 0,75 x D | 0,5 x D | 0,5 x D | 90 | – | 115 | fz | 0,023 | 0,030 | 0,036 | 0,050 | 0,061 | 0,070 |
M
| 2 | 0,75 x D | 0,5 x D | 0,5 x D | 60 | – | 80 | fz | 0,019 | 0,024 | 0,029 | 0,040 | 0,048 | 0,056 |
| 1 | 0,75 x D | 0,5 x D | 0,5 x D | 120 | – | 150 | fz | 0,028 | 0,036 | 0,044 | 0,060 | 0,072 | 0,083 |
K
| 2 | 0,75 x D | 0,5 x D | 0,5 x D | 110 | – | 140 | fz | 0,023 | 0,030 | 0,036 | 0,050 | 0,061 | 0,070 | |
| 1 | 0,75 x D | 0,5 x D | 0,5 x D | 500 | – | 2000 | fz | 0,040 | 0,050 | 0,060 | 0,080 | 0,100 | 0,120 | |
| N | 2 | 0,75 x D | 0,5 x D | 0,5 x D | 500 | – | 1500 | fz | 0,036 | 0,045 | 0,054 | 0,072 | 0,090 | 0,108 |
| 5 | 0,75 x D | 0,5 x D | 0,5 x D | 250 | – | 1000 | fz | 0,036 | 0,045 | 0,054 | 0,072 | 0,090 | 0,108 |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for fi nishing applications or for lower hardness (machinability) within group.
Application Data • Series 423039 423038 • NINA
- Series 423039 423038 • NINA
Side Milling (A) K30F-DCHP Recommended feed per tooth (fz = mm/th) for 3D milling/profi ling and Slotting (B) AlTiN Cutting Speed — vc
A B D1 — Diameter
m/min Material
| Group | ap ae | ap | min | – | max | mm | 4,0 | 5,0 | 6,0 | 8,0 | 10,0 | 12,0 | ||
| 0 | 0,75 x D | 0,5 x D | 0,5 x D | 150 | – | 200 | fz | 0,028 | 0,036 | 0,044 | 0,060 | 0,072 | 0,083 | |
| 1 | 0,75 x D | 0,5 x D | 0,5 x D | 150 | – | 200 | fz | 0,028 | 0,036 | 0,044 | 0,060 | 0,072 | 0,083 | |
| P | 2 | 0,75 x D | 0,5 x D | 0,5 x D | 140 | – | 190 | fz | 0,028 | 0,036 | 0,044 | 0,060 | 0,072 | 0,083 |
| 3 | 0,75 x D | 0,5 x D | 0,5 x D | 120 | – | 160 | fz | 0,023 | 0,030 | 0,036 | 0,050 | 0,061 | 0,070 | |
| 4 | 0,75 x D | 0,5 x D | 0,5 x D | 90 | – | 150 | fz | 0,021 | 0,027 | 0,033 | 0,045 | 0,054 | 0,062 | |
| 1 | 0,75 x D | 0,5 x D | 0,5 x D | 90 | – | 115 | fz | 0,023 | 0,030 | 0,036 | 0,050 | 0,061 | 0,070 |
M
| 2 | 0,75 x D | 0,5 x D | 0,5 x D | 60 | – | 80 | fz | 0,019 | 0,024 | 0,029 | 0,040 | 0,048 | 0,056 |
| 1 | 0,75 x D | 0,5 x D | 0,5 x D | 120 | – | 150 | fz | 0,028 | 0,036 | 0,044 | 0,060 | 0,072 | 0,083 |
K
| 2 | 0,75 x D | 0,5 x D | 0,5 x D | 110 | – | 140 | fz | 0,023 | 0,030 | 0,036 | 0,050 | 0,061 | 0,070 | |
| 1 | 0,75 x D | 0,5 x D | 0,5 x D | 500 | – | 2000 | fz | 0,040 | 0,050 | 0,060 | 0,080 | 0,100 | 0,120 | |
| N | 2 | 0,75 x D | 0,5 x D | 0,5 x D | 500 | – | 1500 | fz | 0,036 | 0,045 | 0,054 | 0,072 | 0,090 | 0,108 |
| 5 | 0,75 x D | 0,5 x D | 0,5 x D | 250 | – | 1000 | fz | 0,036 | 0,045 | 0,054 | 0,072 | 0,090 | 0,108 |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for fi nishing applications or for lower hardness (machinability) within group.
