- Non-centre cutting.
- Chamfering.
- Standard items listed. Additional styles and coatings made-to-order.
| End Mill Tol | erances | ||
| D1 | tolerance h10 + / - | D | tolerance h6 + / - |
| �3 | 0/0,04 | �3 | 0/0,006 |
| > 3–6 | 0/0,048 | > 3–6 | 0/0,008 |
| > 6–10 | 0/0,058 | > 6–10 | 0/0,009 |
| > 10–18 | 0/0,070 | > 10–18 | 0/0,011 |
| > 18–30 | 0/0,084 | > 18–30 | 0/0,013 |

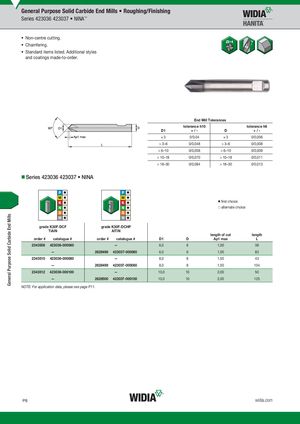

Series 423036 423037 NINA
first choice alternate choice
grade K30F-DCFK30F-DCF grade K30F-DCHPK30F-DCHP TiAlN AlTiN
| K30F-DCF K3 grade K30F-DCF TiAlN order # catalogue # grade order # | 0F-DCHP K30F-DCHP AlTiN catalogue # | D1 | D | length of cut Ap1 max | length L |
| 2343508 423036-000060 | — | 6,0 | 6 | 1,00 | 38 |
| — 2628498 | 423037-000060 | 6,0 | 6 | 1,00 | 83 |
| 2343510 423036-000080 | — | 8,0 | 8 | 1,50 | 43 |
| — 2628499 | 423037-000080 | 8,0 | 8 | 1,50 | 104 |
| 2343512 423036-000100 | — | 10,0 | 10 | 2,00 | 50 |
| — 2628500 | 423037-000100 | 10,0 | 10 | 2,00 | 125 |
