- Centre cutting.
- Standard items listed. Additional styles and coatings made-to-order.

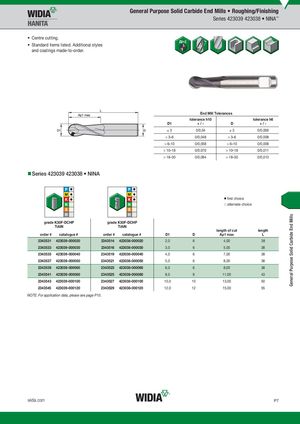

End Mill Tolerances tolerance h10 tolerance h6
| D1 | + / - | D | + / - | |
| ) 3 | 0/0,04 | ) 3 | 0/0,006 | |
| > 3–6 | 0/0,048 | > 3–6 | 0/0,008 | |
| > 6–10 | 0/0,058 | > 6–10 | 0/0,009 | |
| > 10–18 | 0/0,070 | > 10–18 | 0/0,011 | |
| > 18–30 | 0/0,084 | > 18–30 | 0/0,013 |
Series 423039 423038 NINA
first choice alternate choice
grade K30F-DCHPK30F-DCHP grade K30F-DCHPK30F-DCHP TiAlN TiAlN length of cut length
| order # catalogue # | order # catalogue # | D1 | D | Ap1 max | L |
| 2343531 423039-000020 | 2343514 423038-000020 | 2,0 | 6 | 4,00 | 38 |
| 2343533 423039-000030 | 2343516 423038-000030 | 3,0 | 6 | 5,00 | 38 |
| 2343535 423039-000040 | 2343519 423038-000040 | 4,0 | 6 | 7,00 | 38 |
| 2343537 423039-000050 | 2343521 423038-000050 | 5,0 | 6 | 8,00 | 38 |
| 2343539 423039-000060 | 2343523 423038-000060 | 6,0 | 6 | 8,00 | 38 |
| 2343541 423039-000080 | 2343525 423038-000080 | 8,0 | 8 | 11,00 | 43 |
| 2343543 423039-000100 | 2343527 423038-000100 | 10,0 | 10 | 13,00 | 50 |
| 2343545 423039-000120 | 2343529 423038-000120 | 12,0 | 12 | 15,00 | 55 |
NOTE: For application data, please see page P10.
