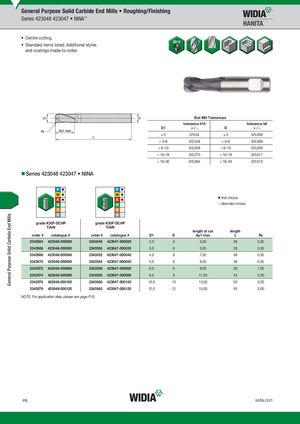

Общий каталог Widia 2017 - страница 1284
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
- Centre cutting.
- Standard items listed. Additional styles and coatings made-to-order.
End Mill Tolerances tolerance h10 tolerance h6
| D1 | + / - | D | + / - | |
| ) 3 | 0/0,04 | ) 3 | 0/0,006 | |
| > 3–6 | 0/0,048 | > 3–6 | 0/0,008 | |
| > 6–10 | 0/0,058 | > 6–10 | 0/0,009 | |
| > 10–18 | 0/0,070 | > 10–18 | 0/0,011 | |
| > 18–30 | 0/0,084 | > 18–30 | 0/0,013 |
Series 423048 423047 NINA
first choice alternate choice
grade K30F-DCHPK30F-DCHP grade K30F-DCHPK30F-DCHP TiAlN TiAlN length of cut length
| order # catalogue # | order # catalogue # | D1 | D | Ap1 max | L | R¡ |
| 2343564 423048-000020 | 2343548 423047-000020 | 2,0 | 6 | 4,00 | 38 | 0,50 |
| 2343566 423048-000030 | 2343550 423047-000030 | 3,0 | 6 | 5,00 | 38 | 0,50 |
| 2343568 423048-000040 | 2343552 423047-000040 | 4,0 | 6 | 7,00 | 38 | 0,50 |
| 2343570 423048-000050 | 2343554 423047-000050 | 5,0 | 6 | 8,00 | 38 | 0,50 |
| 2343572 423048-000060 | 2343556 423047-000060 | 6,0 | 6 | 8,00 | 38 | 1,00 |
| 2343574 423048-000080 | 2343558 423047-000080 | 8,0 | 8 | 11,00 | 43 | 2,00 |
| 2343576 423048-000100 | 2343560 423047-000100 | 10,0 | 10 | 13,00 | 50 | 3,00 |
| 2343579 423048-000120 | 2343562 423047-000120 | 12,0 | 12 | 15,00 | 55 | 3,00 |
NOTE: For application data, please see page P10.
