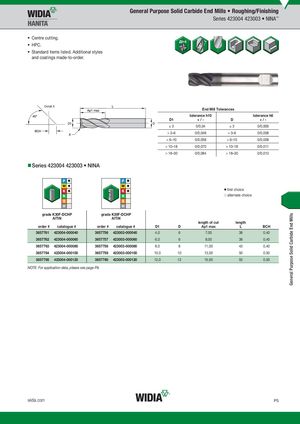

- Centre cutting.
- HPC.
- Standard items listed. Additional styles and coatings made-to-order.
Detail X
Series 423004 423003 NINA
End Mill Tolerances tolerance h10 tolerance h6
| D1 | + / - | D | + / - | |
| ) 3 | 0/0,04 | ) 3 | 0/0,006 | |
| > 3–6 | 0/0,048 | > 3–6 | 0/0,008 | |
| > 6–10 | 0/0,058 | > 6–10 | 0/0,009 | |
| > 10–18 | 0/0,070 | > 10–18 | 0/0,011 | |
| > 18–30 | 0/0,084 | > 18–30 | 0/0,013 |
first choice alternate choice
grade K30F-DCHPK30F-DCHP grade K30F-DCHPK30F-DCHP AlTiN AlTiN length of cut length
| order # catalogue # | order # catalogue # | D1 | D | Ap1 max | L | BCH |
| 3657761 423004-000040 | 3657756 423003-000040 | 4,0 | 6 | 7,00 | 38 | 0,40 |
| 3657762 423004-000060 | 3657757 423003-000060 | 6,0 | 6 | 8,00 | 38 | 0,40 |
| 3657763 423004-000080 | 3657758 423003-000080 | 8,0 | 8 | 11,00 | 43 | 0,40 |
| 3657764 423004-000100 | 3657759 423003-000100 | 10,0 | 10 | 13,00 | 50 | 0,50 |
| 3657765 423004-000120 | 3657760 423003-000120 | 12,0 | 12 | 15,00 | 55 | 0,50 |
NOTE: For application data, please see page P9.
