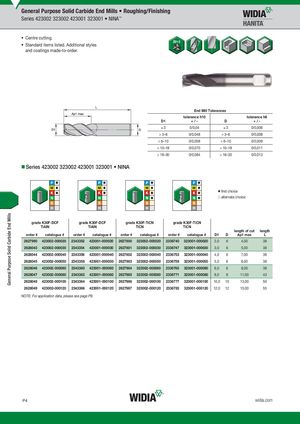

Series 423002 323002 423001 323001 NINA™
- Centre cutting.
- Standard items listed. Additional styles and coatings made-to-order.
End Mill Tolerances tolerance h10 tolerance h6
| D1 | + / - | D | + / - | |
| ) 3 | 0/0,04 | ) 3 | 0/0,006 | |
| > 3–6 | 0/0,048 | > 3–6 | 0/0,008 | |
| > 6–10 | 0/0,058 | > 6–10 | 0/0,009 | |
| > 10–18 | 0/0,070 | > 10–18 | 0/0,011 | |
| > 18–30 | 0/0,084 | > 18–30 | 0/0,013 |
Series 423002 323002 423001 323001 NINA
first choice alternate choice
K30F-DCF K30F-DCF K30F-TICN K30F-TICN
grade K30F-DCF grade K30F-DCF grade K30F-TiCN grade K30F-TiCN
TiAlN TiAlN TiCN TiCN
length of cut length
| order # catalogue # | order # catalogue # | order # catalogue # | order # catalogue # | D1 | D | Ap1 max | L |
| 2627990 423002-000020 | 2343352 423001-000020 | 2627800 323002-000020 | 2336740 323001-000020 | 2,0 | 6 | 4,00 | 38 |
| 2628043 423002-000030 | 2343354 423001-000030 | 2627801 323002-000030 | 2336747 323001-000030 | 3,0 | 6 | 5,00 | 38 |
| 2628044 423002-000040 | 2343356 423001-000040 | 2627802 323002-000040 | 2336753 323001-000040 | 4,0 | 6 | 7,00 | 38 |
| 2628045 423002-000050 | 2343358 423001-000050 | 2627983 323002-000050 | 2336759 323001-000050 | 5,0 | 6 | 8,00 | 38 |
| 2628046 423002-000060 | 2343360 423001-000060 | 2627984 323002-000060 | 2336765 323001-000060 | 6,0 | 6 | 8,00 | 38 |
| 2628047 423002-000080 | 2343362 423001-000080 | 2627985 323002-000080 | 2336771 323001-000080 | 8,0 | 8 | 11,00 | 43 |
| 2628048 423002-000100 | 2343364 423001-000100 | 2627986 323002-000100 | 2336777 323001-000100 | 10,0 | 10 | 13,00 | 50 |
| 2628049 423002-000120 | 2343366 423001-000120 | 2627987 323002-000120 | 2336783 323001-000120 | 12,0 | 12 | 15,00 | 55 |
NOTE: For application data, please see page P9.
