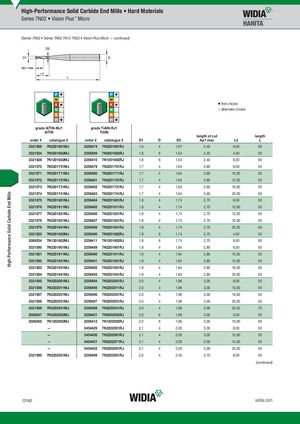

(Series 7N02 • Series 7N02 7N12 7N22 • Vision Plus Micro — continued)
| L3 | ||||||||
| Al grade | TiN-MJ1 AlTiN-MJ1 AlTiN | TiAlN-RJ1 grade TiAlN-RJ1 TiAlN | �fir �alt | ist choice ernate choice | ||||
| order # | catalogue # | order # catalogue # | D1 | D | D3 | length of cut Ap1 max | L3 | length L |
| 3321565 | 7N2201601MJ | 2256474 7N2201601RJ | 1,6 | 4 | 1,57 | 2,40 | 6,00 | 50 |
| 3321524 | 7N0201602MJ | 2256399 7N0201602RJ | 1,6 | 6 | 1,54 | 2,40 | 4,00 | 50 |
| 3321528 | 7N1201602MJ | 2256410 7N1201602RJ | 1,6 | 6 | 1,54 | 2,40 | 8,00 | 60 |
| 3321570 | 7N2201701MJ | 2256479 7N2201701RJ | 1,7 | 4 | 1,64 | 2,60 | 6,00 | 50 |
| 3321571 | 7N2201711MJ | 2256480 7N2201711RJ | 1,7 | 4 | 1,64 | 2,60 | 10,00 | 50 |
| 3321572 | 7N2201721MJ | 2256481 7N2201721RJ | 1,7 | 4 | 1,64 | 2,60 | 12,00 | 50 |
| 3321573 | 7N2201731MJ | 2256482 7N2201731RJ | 1,7 | 4 | 1,64 | 2,60 | 16,00 | 50 |
| 3321574 | 7N2201741MJ | 2256483 7N2201741RJ | 1,7 | 4 | 1,64 | 2,60 | 20,00 | 63 |
| 3321575 | 7N2201801MJ | 2256484 7N2201801RJ | 1,8 | 4 | 1,74 | 2,70 | 6,00 | 50 |
| 3321576 | 7N2201811MJ | 2256485 7N2201811RJ | 1,8 | 4 | 1,74 | 2,70 | 10,00 | 50 |
| 3321577 | 7N2201821MJ | 2256486 7N2201821RJ | 1,8 | 4 | 1,74 | 2,70 | 12,00 | 50 |
| 3321578 | 7N2201831MJ | 2256487 7N2201831RJ | 1,8 | 4 | 1,74 | 2,70 | 16,00 | 50 |
| 3321579 | 7N2201841MJ | 2256488 7N2201841RJ | 1,8 | 4 | 1,74 | 2,70 | 20,00 | 63 |
| 3321525 | 7N0201802MJ | 2256400 7N0201802RJ | 1,8 | 6 | 1,74 | 2,70 | 4,50 | 50 |
| 3089254 | 7N1201802MJ | 2256411 7N1201802RJ | 1,8 | 6 | 1,74 | 2,70 | 9,00 | 60 |
| 3321580 | 7N2201901MJ | 2256489 7N2201901RJ | 1,9 | 4 | 1,84 | 2,80 | 6,00 | 50 |
| 3321581 | 7N2201911MJ | 2256490 7N2201911RJ | 1,9 | 4 | 1,84 | 2,80 | 10,00 | 50 |
| 3321582 | 7N2201921MJ | 2256491 7N2201921RJ | 1,9 | 4 | 1,84 | 2,80 | 12,00 | 50 |
| 3321583 | 7N2201931MJ | 2256492 7N2201931RJ | 1,9 | 4 | 1,84 | 2,80 | 16,00 | 50 |
| 3321584 | 7N2201941MJ | 2256493 7N2201941RJ | 1,9 | 4 | 1,84 | 2,80 | 20,00 | 63 |
| 3321585 | 7N2202001MJ | 2256494 7N2202001RJ | 2,0 | 4 | 1,96 | 3,00 | 6,00 | 50 |
| 3321586 | 7N2202011MJ | 2256495 7N2202011RJ | 2,0 | 4 | 1,96 | 3,00 | 10,00 | 50 |
| 3321587 | 7N2202021MJ | 2256496 7N2202021RJ | 2,0 | 4 | 1,96 | 3,00 | 16,00 | 50 |
| 3321588 | 7N2202031MJ | 2256497 7N2202031RJ | 2,0 | 4 | 1,96 | 3,00 | 20,00 | 63 |
| 3321589 | 7N2202041MJ | 2256498 7N2202041RJ | 2,0 | 4 | 1,96 | 3,00 | 20,00 | 75 |
| 3089247 | 7N0202002MJ | 2256401 7N0202002RJ | 2,0 | 6 | 1,96 | 3,00 | 5,00 | 50 |
| 3089255 | 7N1202002MJ | 2256412 7N1202002RJ | 2,0 | 6 | 1,96 | 3,00 | 10,00 | 60 |
| — | 3454429 7N2202051RJ | 2,1 | 4 | 2,00 | 3,00 | 8,00 | 50 | |
| — | 3454430 7N2202061RJ | 2,1 | 4 | 2,00 | 3,00 | 12,00 | 50 | |
| — | 3454431 7N2202071RJ | 2,1 | 4 | 2,00 | 3,00 | 14,00 | 50 | |
| — | 3454432 7N2202091RJ | 2,1 | 4 | 2,00 | 3,00 | 25,00 | 63 | |
| 3321590 | 7N2202501MJ | 2256499 7N2202501RJ | 2,5 | 4 | 2,40 | 3,70 | 8,00 | 50 |
