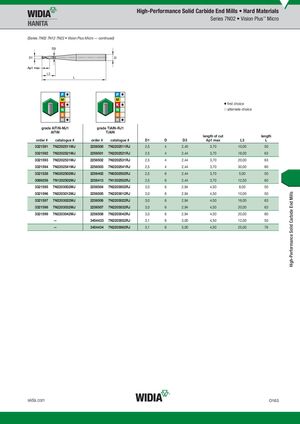

Общий каталог Widia 2017 - страница 1223
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
(Series 7N02 7N12 7N22 • Vision Plus Micro — continued)
| L3 | ||||||||
| Al grade order # | TiN-MJ1 AlTiN-MJ1 AlTiN catalogue # | TiAlN-RJ1 grade TiAlN-RJ1 TiAlN order # catalogue # | D1 | D | D3 | �fir �al length of cut Ap1 max | ist choice ternate choice L3 | length L |
| 3321591 | 7N2202511MJ | 2256500 7N2202511RJ | 2,5 | 4 | 2,40 | 3,70 | 10,00 | 50 |
| 3321592 | 7N2202521MJ | 2256501 7N2202521RJ | 2,5 | 4 | 2,44 | 3,70 | 16,00 | 63 |
| 3321593 | 7N2202531MJ | 2256502 7N2202531RJ | 2,5 | 4 | 2,44 | 3,70 | 20,00 | 63 |
| 3321594 | 7N2202541MJ | 2256503 7N2202541RJ | 2,5 | 4 | 2,44 | 3,70 | 30,00 | 80 |
| 3321526 | 7N0202502MJ | 2256402 7N0202502RJ | 2,5 | 6 | 2,44 | 3,70 | 5,00 | 50 |
| 3089256 | 7N1202502MJ | 2256413 7N1202502RJ | 2,5 | 6 | 2,44 | 3,70 | 12,50 | 60 |
| 3321595 | 7N2203002MJ | 2256504 7N2203002RJ | 3,0 | 6 | 2,94 | 4,50 | 8,00 | 50 |
| 3321596 | 7N2203012MJ | 2256505 7N2203012RJ | 3,0 | 6 | 2,94 | 4,50 | 10,00 | 50 |
| 3321597 | 7N2203022MJ | 2256506 7N2203022RJ | 3,0 | 6 | 2,94 | 4,50 | 16,00 | 63 |
| 3321598 | 7N2203032MJ | 2256507 7N2203032RJ | 3,0 | 6 | 2,94 | 4,50 | 20,00 | 63 |
| 3321599 | 7N2203042MJ | 2256508 7N2203042RJ | 3,0 | 6 | 2,94 | 4,50 | 20,00 | 80 |
| — | 3454433 7N2203052RJ | 3,1 | 6 | 3,00 | 4,50 | 12,00 | 50 | |
| — | 3454434 7N2203062RJ | 3,1 | 6 | 3,00 | 4,50 | 25,00 | 76 |
