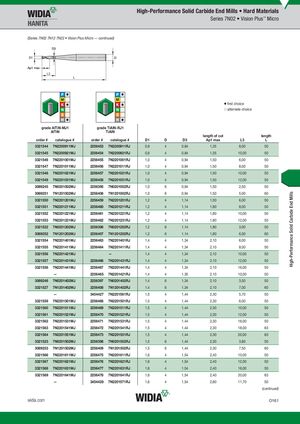

(Series 7N02 7N12 7N22 • Vision Plus Micro — continued)
L3
first choice alternate choice
| AlTiN-MJ1 grade AlTiN-MJ1 AlTiN | TiAlN-RJ1 grade TiAlN-RJ1 TiAlN | length of cut | length | ||||
| order # catalogue # | order # catalogue # | D1 | D | D3 | Ap1 max | L3 | L |
| 3321544 7N2200911MJ | 2256453 7N2200911RJ | 0,9 | 4 | 0,84 | 1,35 | 8,00 | 50 |
| 3321545 7N2200921MJ | 2256454 7N2200921RJ | 0,9 | 4 | 0,84 | 1,35 | 10,00 | 50 |
| 3321546 7N2201001MJ | 2256455 7N2201001RJ | 1,0 | 4 | 0,94 | 1,50 | 6,00 | 50 |
| 3321547 7N2201011MJ | 2256456 7N2201011RJ | 1,0 | 4 | 0,94 | 1,50 | 8,00 | 50 |
| 3321548 7N2201021MJ | 2256457 7N2201021RJ | 1,0 | 4 | 0,94 | 1,50 | 10,00 | 50 |
| 3321549 7N2201031MJ | 2256458 7N2201031RJ | 1,0 | 4 | 0,94 | 1,50 | 12,00 | 50 |
| 3089245 7N0201002MJ | 2256395 7N0201002RJ | 1,0 | 6 | 0,94 | 1,50 | 2,50 | 50 |
| 3089251 7N1201002MJ | 2256406 7N1201002RJ | 1,0 | 6 | 0,94 | 1,50 | 5,00 | 60 |
| 3321550 7N2201201MJ | 2256459 7N2201201RJ | 1,2 | 4 | 1,14 | 1,50 | 6,00 | 50 |
| 3321551 7N2201211MJ | 2256460 7N2201211RJ | 1,2 | 4 | 1,14 | 1,80 | 8,00 | 50 |
| 3321552 7N2201221MJ | 2256461 7N2201221RJ | 1,2 | 4 | 1,14 | 1,80 | 10,00 | 50 |
| 3321553 7N2201231MJ | 2256462 7N2201231RJ | 1,2 | 4 | 1,14 | 1,80 | 12,00 | 50 |
| 3321522 7N0201202MJ | 2256396 7N0201202RJ | 1,2 | 6 | 1,14 | 1,80 | 3,00 | 50 |
| 3089252 7N1201202MJ | 2256407 7N1201202RJ | 1,2 | 6 | 1,14 | 1,80 | 6,00 | 60 |
| 3321554 7N2201401MJ | 2256463 7N2201401RJ | 1,4 | 4 | 1,34 | 2,10 | 6,00 | 50 |
| 3321555 7N2201411MJ | 2256464 7N2201411RJ | 1,4 | 4 | 1,34 | 2,10 | 8,00 | 50 |
| 3321556 7N2201421MJ | — | 1,4 | 4 | 1,34 | 2,10 | 10,00 | 50 |
| 3321557 7N2201431MJ | 2256466 7N2201431RJ | 1,4 | 4 | 1,34 | 2,10 | 12,00 | 50 |
| 3321558 7N2201441MJ | 2256467 7N2201441RJ | 1,4 | 4 | 1,34 | 2,10 | 16,00 | 50 |
| — | 2256465 7N2201421RJ | 1,4 | 4 | 1,35 | 2,10 | 10,00 | 50 |
| 3089246 7N0201402MJ | 2256397 7N0201402RJ | 1,4 | 6 | 1,34 | 2,10 | 3,50 | 50 |
| 3321527 7N1201402MJ | 2256408 7N1201402RJ | 1,4 | 6 | 1,34 | 2,10 | 7,00 | 60 |
| — | 3454427 7N2201561RJ | 1,5 | 4 | 1,44 | 2,30 | 5,70 | 50 |
| 3321559 7N2201501MJ | 2256468 7N2201501RJ | 1,5 | 4 | 1,44 | 2,30 | 6,00 | 50 |
| 3321560 7N2201511MJ | 2256469 7N2201511RJ | 1,5 | 4 | 1,44 | 2,30 | 10,00 | 50 |
| 3321561 7N2201521MJ | 2256470 7N2201521RJ | 1,5 | 4 | 1,44 | 2,30 | 12,00 | 50 |
| 3321562 7N2201531MJ | 2256471 7N2201531RJ | 1,5 | 4 | 1,44 | 2,30 | 16,00 | 50 |
| 3321563 7N2201541MJ | 2256472 7N2201541RJ | 1,5 | 4 | 1,44 | 2,30 | 18,00 | 63 |
| 3321564 7N2201551MJ | 2256473 7N2201551RJ | 1,5 | 4 | 1,44 | 2,30 | 20,00 | 63 |
| 3321523 7N0201502MJ | 2256398 7N0201502RJ | 1,5 | 6 | 1,44 | 2,30 | 3,80 | 50 |
| 3089253 7N1201502MJ | 2256409 7N1201502RJ | 1,5 | 6 | 1,44 | 2,30 | 7,50 | 60 |
| 3321566 7N2201611MJ | 2256475 7N2201611RJ | 1,6 | 4 | 1,54 | 2,40 | 10,00 | 50 |
| 3321567 7N2201621MJ | 2256476 7N2201621RJ | 1,6 | 4 | 1,54 | 2,40 | 12,00 | 50 |
| 3321568 7N2201631MJ | 2256477 7N2201631RJ | 1,6 | 4 | 1,54 | 2,40 | 16,00 | 50 |
| 3321569 7N2201641MJ | 2256478 7N2201641RJ | 1,6 | 4 | 1,54 | 2,40 | 20,00 | 63 |
| — | 3454428 7N2201571RJ | 1,6 | 4 | 1,54 | 2,80 | 11,70 | 50 |
