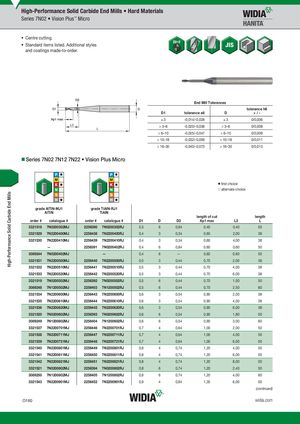

Общий каталог Widia 2017 - страница 1220
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
- Centre cutting.
- Standard items listed. Additional styles and coatings made-to-order.
| End Mill To | lerances | ||
| D1 | tolerance e8 | D | tolerance h6 + / - |
| �3 | -0,014/-0,028 | �3 | 0/0,006 |
| > 3–6 | -0,020/-0,038 | > 3–6 | 0/0,008 |
| > 6–10 | -0,025/-0,047 | > 6–10 | 0/0,009 |
| > 10–18 | -0,032/-0,059 | > 10–18 | 0/0,011 |
| > 18–30 | -0,040/-0,073 | > 18–30 | 0/0,013 |
Series 7N02 7N12 7N22 Vision Plus Micro
first choice alternate choice
grade AlTiN-MJ1AlTiN-MJ1 grade TiAlN-RJ1TiAlN-RJ1
| AlTiN-MJ1 grade AlTiN-MJ1 AlTiN | TiAlN-RJ1 grade TiAlN-RJ1 TiAlN | ||||||
| order # catalogue # | order # catalogue # | D1 | D | D3 | length of cut Ap1 max | L3 | length L |
| 3321518 7N0200302MJ | 2256390 7N0200302RJ | 0,3 | 6 | 0,84 | 0,40 | 0,40 | 50 |
| 3321529 7N2200400MJ | 2256438 7N2200400RJ | 0,4 | 3 | 0,34 | 0,60 | 2,00 | 38 |
| 3321530 7N2200410MJ | 2256439 7N2200410RJ | 0,4 | 3 | 0,34 | 0,60 | 4,00 | 38 |
| — | 2256391 7N0200402RJ | 0,4 | 6 | 0,84 | 0,60 | 0,60 | 50 |
| 3089244 7N0200402MJ | — | 0,4 | 6 | — | 0,60 | 0,60 | 50 |
| 3321531 7N2200500MJ | 2256440 7N2200500RJ | 0,5 | 3 | 0,44 | 0,70 | 2,00 | 38 |
| 3321532 7N2200510MJ | 2256441 7N2200510RJ | 0,5 | 3 | 0,44 | 0,70 | 4,00 | 38 |
| 3321533 7N2200520MJ | 2256442 7N2200520RJ | 0,5 | 3 | 0,44 | 0,70 | 6,00 | 38 |
| 3321519 7N0200502MJ | 2256392 7N0200502RJ | 0,5 | 6 | 0,44 | 0,70 | 1,50 | 50 |
| 3089248 7N1200502MJ | 2256403 7N1200502RJ | 0,5 | 6 | 0,44 | 0,70 | 2,50 | 60 |
| 3321534 7N2200600MJ | 2256443 7N2200600RJ | 0,6 | 3 | 0,54 | 0,90 | 2,00 | 38 |
| 3321535 7N2200610MJ | 2256444 7N2200610RJ | 0,6 | 3 | 0,54 | 0,90 | 4,00 | 38 |
| 3321536 7N2200620MJ | 2256445 7N2200620RJ | 0,6 | 3 | 0,54 | 0,90 | 6,00 | 38 |
| 3321520 7N0200602MJ | 2256393 7N0200602RJ | 0,6 | 6 | 0,54 | 0,90 | 1,80 | 50 |
| 3089249 7N1200602MJ | 2256404 7N1200602RJ | 0,6 | 6 | 0,54 | 0,90 | 3,00 | 60 |
| 3321537 7N2200701MJ | 2256446 7N2200701RJ | 0,7 | 4 | 0,64 | 1,00 | 2,00 | 50 |
| 3321538 7N2200711MJ | 2256447 7N2200711RJ | 0,7 | 4 | 0,64 | 1,00 | 4,00 | 50 |
| 3321539 7N2200721MJ | 2256448 7N2200721RJ | 0,7 | 4 | 0,64 | 1,00 | 6,00 | 50 |
| 3321540 7N2200801MJ | 2256449 7N2200801RJ | 0,8 | 4 | 0,74 | 1,20 | 4,00 | 50 |
| 3321541 7N2200811MJ | 2256450 7N2200811RJ | 0,8 | 4 | 0,74 | 1,20 | 6,00 | 50 |
| 3321542 7N2200821MJ | 2256451 7N2200821RJ | 0,8 | 4 | 0,74 | 1,20 | 8,00 | 50 |
| 3321521 7N0200802MJ | 2256394 7N0200802RJ | 0,8 | 6 | 0,74 | 1,20 | 2,40 | 50 |
| 3089250 7N1200802MJ | 2256405 7N1200802RJ | 0,8 | 6 | 0,74 | 1,20 | 4,00 | 60 |
| 3321543 7N2200901MJ | 2256452 7N2200901RJ | 0,9 | 4 | 0,84 | 1,35 | 6,00 | 50 |
