- Centre cutting.
- Standard items listed. Additional styles and coatings made-to-order.
| End Mill Tol | erances | ||
| D1 | tolerance h10 + / - | D | tolerance h6 + / - |
| �3 | 0/0,040 | �3 | 0/0,006 |
| > 3–6 | 0/0,048 | > 3–6 | 0/0,008 |
| > 6–10 | 0/0,058 | > 6–10 | 0/0,009 |
| > 10–18 | 0/0,070 | > 10–18 | 0/0,011 |
| > 18–30 | 0/0,084 | > 18–30 | 0/0,013 |

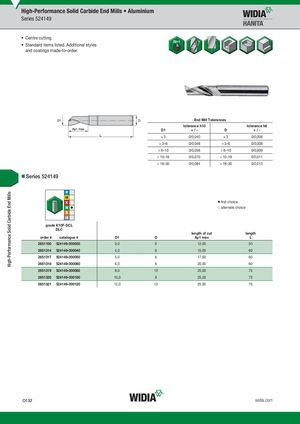

Series 524149
first choice alternate choice
grade K10F-DCLK10F-DCL DLC
| K10F-DCL grade K10F-DCL DLC order # catalogue # | D1 | D | length of cut Ap1 max | length L |
| 2651100 524149-000030 | 3,0 | 6 | 12,00 | 50 |
| 2651314 524149-000040 | 4,0 | 6 | 15,00 | 60 |
| 2651317 524149-000050 | 5,0 | 6 | 17,00 | 60 |
| 2651318 524149-000060 | 6,0 | 6 | 20,00 | 60 |
| 2651319 524149-000080 | 8,0 | 10 | 25,00 | 75 |
| 2651320 524149-000100 | 10,0 | 8 | 25,00 | 75 |
| 2651321 524149-000120 | 12,0 | 12 | 25,00 | 75 |
O132 O132 widia.com
