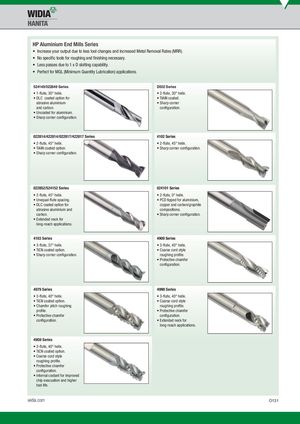

Общий каталог Widia 2017 - страница 1191

HP Aluminium End Mills Series

• Increase your output due to less tool changes and increased Metal Removal Rates (MRR).
• No specifi c tools for roughing and fi nishing necessary.
• Less passes due to 1 x D slotting capability.
• Perfect for MQL (Minimum Quantity Lubrication) applications.

524149/022849 Series D502 Series

• 1-fl ute, 30° helix.
• 2-fl ute, 30° helix.
• DLC coated option for
• TiAlN coated.

• Uncoated for aluminium.
• Sharp corner confi guration.

022814/422814/022817/422817 Series 4102 Series

• 2-fl ute, 45° helix.
• 2-fl ute, 45° helix.
• TiAlN coated option.
• Sharp corner confi guration.
• Sharp corner confi guration.

022852/524152 Series 024101 Series

• 2-fl ute, 45° helix.
• 2-fl ute, 0° helix.
• Unequal-fl ute spacing.
• PCD tipped for aluminium,
• DLC coated option for copper and carbon/graphite abrasive aluminium and compositions. carbon. Sharp corner confi guration.
• Extended neck for long-reach applications.

4103 Series 4909 Series

• 3-fl ute, 37° helix.
• 3-fl ute, 40° helix.
• TiCN coated option.
• Coarse cord style
• Sharp corner confi guration. roughing profi le.
• Protective chamfer confi guration.

4979 Series 49N9 Series

• 3-fl ute, 40° helix.
• 3-fl ute, 40° helix.
• TiCN coated option.
• Coarse cord style
• Chamfer pitch roughing roughing profi le. profi le. Protective chamfer
• Protective chamfer confi guration. confi guration. Extended neck for

long-reach applications.

49G9 Series

• 3-fl ute, 40° helix.
• TiCN coated option.
• Coarse cord style roughing profi le.
• Protective chamfer confi guration.
• Internal coolant for improved chip evacuation and higher tool life.
