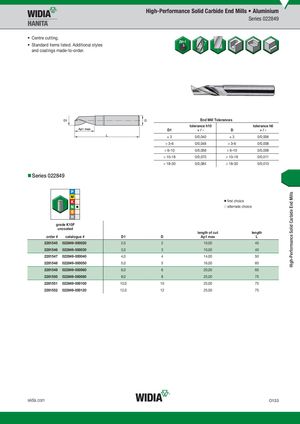

- Centre cutting.
- Standard items listed. Additional styles and coatings made-to-order.
| End Mill Tol | erances | ||
| D1 | tolerance h10 + / - | D | tolerance h6 + / - |
| �3 | 0/0,040 | �3 | 0/0,006 |
| > 3–6 | 0/0,048 | > 3–6 | 0/0,008 |
| > 6–10 | 0/0,058 | > 6–10 | 0/0,009 |
| > 10–18 | 0/0,070 | > 10–18 | 0/0,011 |
| > 18–30 | 0/0,084 | > 18–30 | 0/0,013 |
Series 022849
first choice alternate choice
grade K10FK10F uncoated
| K10F grade K10F uncoated order # catalogue # | D1 | D | length of cut Ap1 max | length L |
| 2281545 022849-000020 | 2,0 | 2 | 10,00 | 40 |
| 2281546 022849-000030 | 3,0 | 3 | 10,00 | 40 |
| 2281547 022849-000040 | 4,0 | 4 | 14,00 | 50 |
| 2281548 022849-000050 | 5,0 | 5 | 16,00 | 60 |
| 2281549 022849-000060 | 6,0 | 6 | 20,00 | 60 |
| 2281550 022849-000080 | 8,0 | 8 | 25,00 | 75 |
| 2281551 022849-000100 | 10,0 | 10 | 25,00 | 75 |
| 2281552 022849-000120 | 12,0 | 12 | 25,00 | 75 |
