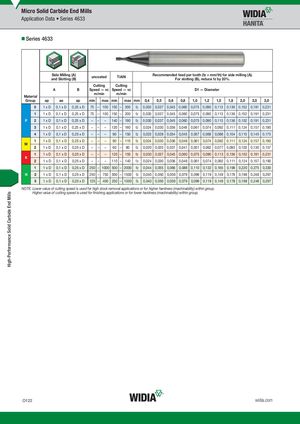

Series 4633
| S a | ide Milling nd Slottin | (A) g (B) | unco | ated | TiA | lN | Recom | mended F | feed p or slott | er tooth ing (B), | (fz = m reduce | m/th) f fz by 2 | or side 0%. | milling ( | A). | ||||
| Material | A | B | Cut Speed m/ | ting — vc min | Cut Speed m/ | ting — vc min | D1 | — Diam | eter | ||||||||||
| Group | ap | ae | ap | min | max | min | max | mm | 0,4 | 0,5 | 0,6 | 0,8 | 1,0 | 1,2 | 1,5 | 1,8 | 2,0 | 2,5 | 3,0 |
| 0 | 1 x D | 0,1 x D | 0,25 x D | 75 – | 100 | 150 – | 200 | fz | 0,030 | 0,037 | 0,045 | 0,060 | 0,075 | 0,090 | 0,113 | 0,136 | 0,152 | 0,191 | 0,231 |
| 1 | 1 x D | 0,1 x D | 0,25 x D | 75 – | 100 | 150 – | 200 | fz | 0,030 | 0,037 | 0,045 | 0,060 | 0,075 | 0,090 | 0,113 | 0,136 | 0,152 | 0,191 | 0,231 |
| P 2 | 1 x D | 0,1 x D | 0,25 x D | – – | – | 140 – | 190 | fz | 0,030 | 0,037 | 0,045 | 0,060 | 0,075 | 0,090 | 0,113 | 0,136 | 0,152 | 0,191 | 0,231 |
| 3 | 1 x D | 0,1 x D | 0,25 x D | – – | – | 120 – | 160 | fz | 0,024 | 0,030 | 0,036 | 0,049 | 0,061 | 0,074 | 0,092 | 0,111 | 0,124 | 0,157 | 0,190 |
| 4 | 1 x D | 0,1 x D | 0,25 x D | – – | – | 90 – | 150 | fz | 0,023 | 0,028 | 0,034 | 0,045 | 0,057 | 0,069 | 0,086 | 0,104 | 0,115 | 0,145 | 0,175 |
| M 1 | 1 x D | 0,1 x D | 0,25 x D | – – | – | 90 – | 115 | fz | 0,024 | 0,030 | 0,036 | 0,049 | 0,061 | 0,074 | 0,092 | 0,111 | 0,124 | 0,157 | 0,190 |
| 2 | 1 x D | 0,1 x D | 0,25 x D | – – | – | 60 – | 80 | fz | 0,020 | 0,025 | 0,031 | 0,041 | 0,051 | 0,062 | 0,077 | 0,093 | 0,103 | 0,130 | 0,157 |
| K 1 | 1 x D | 0,1 x D | 0,25 x D | – – | – | 120 – | 150 | fz | 0,030 | 0,037 | 0,045 | 0,060 | 0,075 | 0,090 | 0,113 | 0,136 | 0,152 | 0,191 | 0,231 |
| 2 | 1 x D | 0,1 x D | 0,25 x D | – – | – | 110 – | 140 | fz | 0,024 | 0,030 | 0,036 | 0,049 | 0,061 | 0,074 | 0,092 | 0,111 | 0,124 | 0,157 | 0,190 |
| 1 | 1 x D | 0,1 x D | 0,25 x D | 250 – | 1000 | 500 – | 2000 | fz | 0,044 | 0,055 | 0,066 | 0,088 | 0,110 | 0,132 | 0,165 | 0,198 | 0,220 | 0,275 | 0,330 |
| N 2 | 1 x D | 0,1 x D | 0,25 x D | 250 – | 750 | 500 – | 1500 | fz | 0,040 | 0,050 | 0,059 | 0,079 | 0,099 | 0,119 | 0,149 | 0,178 | 0,198 | 0,248 | 0,297 |
| 5 | 1 x D | 0,1 x D | 0,25 x D | 125 – | 400 | 250 – | 1000 | fz | 0,040 | 0,050 | 0,059 | 0,079 | 0,099 | 0,119 | 0,149 | 0,178 | 0,198 | 0,248 | 0,297 |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group.
