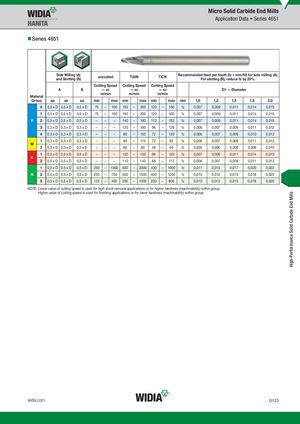

Series 4651
| Si an | de Millin d Slottin | g (A) g (B) | unc | oa | ted | T | iAl | N | T | iC | N | Recom | mended fe For | ed per toot slotting (B) | h (fz = mm , reduce fz | /th) for side by 20%. | milling (A). | |
| Material | A | B | Cuttin m | g — v /m | Speed c in | Cutti m | ng — v /m | Speed c in | Cuttin — m | g S v /m | peed c in | D | 1 — Diame | ter | ||||
| Group | ap | ae | ap | min | max | min | max | min | max | mm | 1,0 | 1,2 | 1,5 | 1,8 | 2,0 | |||
| 0 | 0,5 x D | 0,5 x D | 0,5 x D | 75 | – | 100 | 150 | – | 200 | 120 | – | 160 | fz | 0,007 | 0,009 | 0,011 | 0,014 | 0,015 |
| 1 | 0,5 x D | 0,5 x D | 0,5 x D | 75 | – | 100 | 150 | – | 200 | 120 | – | 160 | fz | 0,007 | 0,009 | 0,011 | 0,014 | 0,015 |
| P 2 | 0,5 x D | 0,5 x D | 0,5 x D | – | – | – | 140 | – | 190 | 112 | – | 152 | fz | 0,007 | 0,009 | 0,011 | 0,014 | 0,015 |
| 3 | 0,3 x D | 0,3 x D | 0,3 x D | – | – | – | 120 | – | 160 | 96 | – | 128 | fz | 0,006 | 0,007 | 0,009 | 0,011 | 0,012 |
| 4 | 0,3 x D | 0,3 x D | 0,3 x D | – | – | – | 90 | – | 150 | 72 | – | 120 | fz | 0,006 | 0,007 | 0,009 | 0,010 | 0,012 |
| M 1 | 0,3 x D | 0,3 x D | 0,3 x D | – | – | – | 90 | – | 115 | 72 | – | 92 | fz | 0,006 | 0,007 | 0,009 | 0,011 | 0,012 |
| 2 | 0,3 x D | 0,3 x D | 0,3 x D | – | – | – | 60 | – | 80 | 48 | – | 64 | fz | 0,005 | 0,006 | 0,008 | 0,009 | 0,010 |
| K 1 | 0,5 x D | 0,5 x D | 0,5 x D | – | – | – | 120 | – | 150 | 96 | – | 120 | fz | 0,007 | 0,009 | 0,011 | 0,014 | 0,015 |
| 2 | 0,5 x D | 0,5 x D | 0,5 x D | – | – | – | 110 | – | 140 | 88 | – | 112 | fz | 0,006 | 0,007 | 0,009 | 0,011 | 0,012 |
| 1 | 0,5 x D | 0,5 x D | 0,5 x D | 250 | – | 1000 | 500 | – | 2000 | 400 | – | 1600 | fz | 0,011 | 0,013 | 0,017 | 0,020 | 0,022 |
| N 2 | 0,5 x D | 0,5 x D | 0,5 x D | 250 | – | 750 | 500 | – | 1500 | 400 | – | 1200 | fz | 0,010 | 0,012 | 0,015 | 0,018 | 0,020 |
| 5 | 0,5 x D | 0,5 x D | 0,5 x D | 125 | – | 400 | 250 | – | 1000 | 200 | – | 800 | fz | 0,010 | 0,012 | 0,015 | 0,018 | 0,020 |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group.
