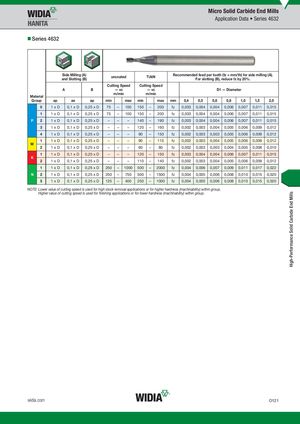

Series 4632
| S a | ide Milling nd Slotting | (A) (B) | un | co | ated | TiA | lN | Rec | ommend | ed feed p For slot | er tooth ting (B), | (fz = mm reduce fz | /th) for s by 20%. | ide millin | g (A). | ||
| Material | A | B | Cutti | ng — m/ | Speed vc min | Cutt | ing — m/m | Speed vc in | D1 | — Diam | eter | ||||||
| Group | ap | ae | ap | min | max | min | max | mm | 0,4 | 0,5 | 0,6 | 0,8 | 1,0 | 1,5 | 2,0 | ||
| 0 | 1 x D | 0,1 x D | 0,25 x D | 75 | – | 100 | 150 | – | 200 | fz | 0,003 | 0,004 | 0,004 | 0,006 | 0,007 | 0,011 | 0,015 |
| 1 | 1 x D | 0,1 x D | 0,25 x D | 75 | – | 100 | 150 | – | 200 | fz | 0,003 | 0,004 | 0,004 | 0,006 | 0,007 | 0,011 | 0,015 |
| P 2 | 1 x D | 0,1 x D | 0,25 x D | – | – | – | 140 | – | 190 | fz | 0,003 | 0,004 | 0,004 | 0,006 | 0,007 | 0,011 | 0,015 |
| 3 | 1 x D | 0,1 x D | 0,25 x D | – | – | – | 120 | – | 160 | fz | 0,002 | 0,003 | 0,004 | 0,005 | 0,006 | 0,009 | 0,012 |
| 4 | 1 x D | 0,1 x D | 0,25 x D | – | – | – | 90 | – | 150 | fz | 0,002 | 0,003 | 0,003 | 0,005 | 0,006 | 0,009 | 0,012 |
| M 1 | 1 x D | 0,1 x D | 0,25 x D | – | – | – | 90 | – | 115 | fz | 0,002 | 0,003 | 0,004 | 0,005 | 0,006 | 0,009 | 0,012 |
| 2 | 1 x D | 0,1 x D | 0,25 x D | – | – | – | 60 | – | 80 | fz | 0,002 | 0,003 | 0,003 | 0,004 | 0,005 | 0,008 | 0,010 |
| K 1 | 1 x D | 0,1 x D | 0,25 x D | – | – | – | 120 | – | 150 | fz | 0,003 | 0,004 | 0,004 | 0,006 | 0,007 | 0,011 | 0,015 |
| 2 | 1 x D | 0,1 x D | 0,25 x D | – | – | – | 110 | – | 140 | fz | 0,002 | 0,003 | 0,004 | 0,005 | 0,006 | 0,009 | 0,012 |
| 1 | 1 x D | 0,1 x D | 0,25 x D | 250 | – | 1000 | 500 | – | 2000 | fz | 0,004 | 0,006 | 0,007 | 0,009 | 0,011 | 0,017 | 0,022 |
| N 2 | 1 x D | 0,1 x D | 0,25 x D | 250 | – | 750 | 500 | – | 1500 | fz | 0,004 | 0,005 | 0,006 | 0,008 | 0,010 | 0,015 | 0,020 |
| 5 | 1 x D | 0,1 x D | 0,25 x D | 125 | – | 400 | 250 | – | 1000 | fz | 0,004 | 0,005 | 0,006 | 0,008 | 0,010 | 0,015 | 0,020 |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group.
