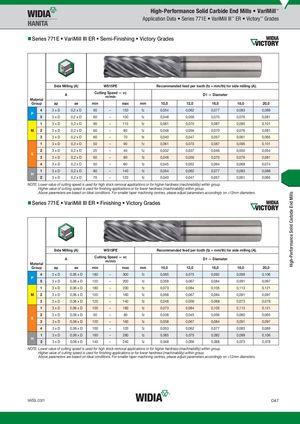

Application Data • Series 771E • VariMill III™ ER • Victory™ Grades
- Series 771E • VariMill III ER • Semi-Finishing • Victory Grades
| Side M | illing (A) | WS15PE | Recommend | ed feed per too | th (fz = mm/th) f | or side milling | (A). | ||||
| Material | A | Cutti | ng Speed m/min | — vc | D1 — Diameter | ||||||
| Group | ap | ae | min | max | mm | 10,0 | 12,0 | 16,0 | 18,0 | 20,0 | |
| P 4 | 3 x D | 0,2 x D | 90 | – | 150 | fz | 0,054 | 0,062 | 0,077 | 0,083 | 0,088 |
| 5 | 3 x D | 0,2 x D | 60 | – | 100 | fz | 0,048 | 0,056 | 0,070 | 0,076 | 0,081 |
| 1 | 3 x D | 0,2 x D | 90 | – | 115 | fz | 0,061 | 0,070 | 0,087 | 0,095 | 0,101 |
| M 2 | 3 x D | 0,2 x D | 60 | – | 80 | fz | 0,048 | 0,056 | 0,070 | 0,076 | 0,081 |
| 3 | 3 x D | 0,2 x D | 60 | – | 70 | fz | 0,040 | 0,047 | 0,057 | 0,061 | 0,065 |
| 1 | 3 x D | 0,2 x D | 50 | – | 90 | fz | 0,061 | 0,070 | 0,087 | 0,095 | 0,101 |
| 2 | 3 x D | 0,2 x D | 25 | – | 40 | fz | 0,032 | 0,037 | 0,046 | 0,050 | 0,054 |
| S 3 | 3 x D | 0,2 x D | 60 | – | 80 | fz | 0,048 | 0,056 | 0,070 | 0,076 | 0,081 |
| 4 | 3 x D | 0,2 x D | 50 | – | 60 | fz | 0,045 | 0,052 | 0,064 | 0,069 | 0,074 |
| H 1 | 3 x D | 0,2 x D | 80 | – | 140 | fz | 0,054 | 0,062 | 0,077 | 0,083 | 0,088 |
| 2 | 3 x D | 0,2 x D | 70 | – | 120 | fz | 0,040 | 0,047 | 0,057 | 0,061 | 0,065 |
| Series OTE: Lower Highe i Above | 771E • Side M value of cu r value of cu i parameter | VariMill III illing (A) tting speed is u tting speed is u i s are based on i | ER • F sed for hig sed for fin deal condi | inishin WS15PE h stock re iishing app tions. For | g • Vict moval appli i lications or smaller tap | ory Gra cations or f i for lower ha er machinin | des Recommend or higher hardness i rdness (machinab g centres, please | ed feed per too (machinability) i ility) within grou adjust parameter | th (fz = mm/th) f within group. i p. s accordingly on | or side milling >12mm diamet | (A). ers. |
| Material | A | Cutti | ng Speed m/min | — vc | D1 — Diameter | ||||||
| Group | ap | ae | min | max | mm | 10,0 | 12,0 | 16,0 | 18,0 | 20,0 | |
| P 4 | 3 x D | 0,06 x D | 180 | – | 300 | fz | 0,065 | 0,075 | 0,092 | 0,099 | 0,106 |
| 5 | 3 x D | 0,06 x D | 120 | – | 200 | fz | 0,058 | 0,067 | 0,084 | 0,091 | 0,097 |
| 1 | 3 x D | 0,06 x D | 180 | – | 230 | fz | 0,073 | 0,084 | 0,105 | 0,113 | 0,121 |
| M 2 | 3 x D | 0,06 x D | 120 | – | 160 | fz | 0,058 | 0,067 | 0,084 | 0,091 | 0,097 |
| 3 | 3 x D | 0,06 x D | 120 | – | 140 | fz | 0,048 | 0,056 | 0,068 | 0,073 | 0,078 |
| 1 | 3 x D | 0,06 x D | 100 | – | 180 | fz | 0,073 | 0,084 | 0,105 | 0,113 | 0,121 |
| 2 | 3 x D | 0,06 x D | 50 | – | 80 | fz | 0,038 | 0,045 | 0,056 | 0,060 | 0,065 |
| S 3 | 3 x D | 0,06 x D | 120 | – | 160 | fz | 0,058 | 0,067 | 0,084 | 0,091 | 0,097 |
| 4 | 3 x D | 0,06 x D | 100 | – | 120 | fz | 0,053 | 0,062 | 0,077 | 0,083 | 0,089 |
| 1 | 3 x D | 0,06 x D | 160 | – | 280 | fz | 0,065 | 0,075 | 0,092 | 0,099 | 0,106 |
| H 2 | 3 x D | 0,06 x D | 140 | – | 240 | fz | 0,048 | 0,056 | 0,068 | 0,073 | 0,078 |
