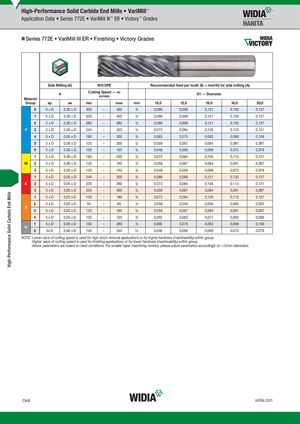

Application Data • Series 772E • VariMill III™ ER • Victory™ Grades
Series 772E • VariMill III ER • Finishing • Victory Grades
| Side M | illing (A) | WS15PE | Recommend | ed feed per too | th (fz = mm/th) f | or side milling ( | A). | ||||
| Material | A | Cutti | ng Spee m/min | d — vc | D1 — Diameter | ||||||
| Group | ap | ae | min | max | mm | 10,0 | 12,0 | 16,0 | 18,0 | 20,0 | |
| 0 | 5 x D | 0,05 x D | 300 | – | 400 | fz | 0,086 | 0,099 | 0,121 | 0,130 | 0,137 |
| 1 | 5 x D | 0,05 x D | 300 | – | 400 | fz | 0,086 | 0,099 | 0,121 | 0,130 | 0,137 |
| 2 | 5 x D | 0,05 x D | 280 | – | 380 | fz | 0,086 | 0,099 | 0,121 | 0,130 | 0,137 |
| P 3 | 5 x D | 0,05 x D | 240 | – | 320 | fz | 0,073 | 0,084 | 0,105 | 0,113 | 0,121 |
| 4 | 5 x D | 0,05 x D | 180 | – | 300 | fz | 0,065 | 0,075 | 0,092 | 0,099 | 0,106 |
| 5 | 5 x D | 0,05 x D | 120 | – | 200 | fz | 0,058 | 0,067 | 0,084 | 0,091 | 0,097 |
| 6 | 5 x D | 0,05 x D | 100 | – | 150 | fz | 0,048 | 0,056 | 0,068 | 0,073 | 0,078 |
| 1 | 5 x D | 0,05 x D | 180 | – | 230 | fz | 0,073 | 0,084 | 0,105 | 0,113 | 0,121 |
| M 2 | 5 x D | 0,05 x D | 120 | – | 160 | fz | 0,058 | 0,067 | 0,084 | 0,091 | 0,097 |
| 3 | 5 x D | 0,05 x D | 120 | – | 140 | fz | 0,048 | 0,056 | 0,068 | 0,073 | 0,078 |
| 1 | 5 x D | 0,05 x D | 240 | – | 300 | fz | 0,086 | 0,099 | 0,121 | 0,130 | 0,137 |
| K 2 | 5 x D | 0,05 x D | 220 | – | 280 | fz | 0,073 | 0,084 | 0,105 | 0,113 | 0,121 |
| 3 | 5 x D | 0,05 x D | 220 | – | 260 | fz | 0,058 | 0,067 | 0,084 | 0,091 | 0,097 |
| 1 | 5 x D | 0,05 x D | 100 | – | 180 | fz | 0,073 | 0,084 | 0,105 | 0,113 | 0,121 |
| S 2 | 5 x D | 0,05 x D | 50 | – | 80 | fz | 0,038 | 0,045 | 0,056 | 0,060 | 0,065 |
| 3 | 5 x D | 0,05 x D | 120 | – | 160 | fz | 0,058 | 0,067 | 0,084 | 0,091 | 0,097 |
| 4 | 5 x D | 0,05 x D | 100 | – | 120 | fz | 0,053 | 0,062 | 0,077 | 0,083 | 0,089 |
| 1 | 5 x D | 0,05 x D | 160 | – | 280 | fz | 0,065 | 0,075 | 0,092 | 0,099 | 0,106 |
| H 2 | 5x D | 0,06 x D | 140 | – | 240 | fz | 0,048 | 0,056 | 0,068 | 0,073 | 0,078 |
Higher value of cutting speed is used for fi nishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on >12mm diameters.
