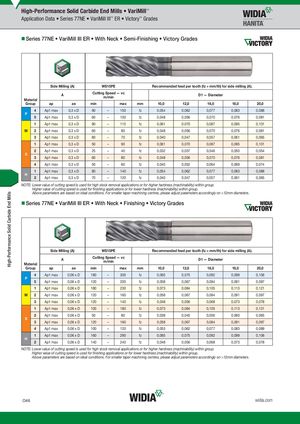

Application Data • Series 77NE • VariMill III™ ER • Victory™ Grades
- Series 77NE • VariMill III ER • With Neck • Semi-Finishing • Victory Grades
| Side Mi | lling (A) | WS15PE | Recommend | ed feed per too | th (fz = mm/th) | for side milling | (A). | |||
| Material | A | Cutti | ng Speed — vc m/min | D1 — Diameter | ||||||
| Group | ap | ae | min | max | mm | 10,0 | 12,0 | 16,0 | 18,0 | 20,0 |
| P 4 | Ap1 max | 0,3 x D | 90 | – 150 | fz | 0,054 | 0,062 | 0,077 | 0,083 | 0,088 |
| 5 | Ap1 max | 0,3 x D | 60 | – 100 | fz | 0,048 | 0,056 | 0,070 | 0,076 | 0,081 |
| 1 | Ap1 max | 0,3 x D | 90 | – 115 | fz | 0,061 | 0,070 | 0,087 | 0,095 | 0,101 |
| M 2 | Ap1 max | 0,3 x D | 60 | – 80 | fz | 0,048 | 0,056 | 0,070 | 0,076 | 0,081 |
| 3 | Ap1 max | 0,3 x D | 60 | – 70 | fz | 0,040 | 0,047 | 0,057 | 0,061 | 0,065 |
| 1 | Ap1 max | 0,3 x D | 50 | – 90 | fz | 0,061 | 0,070 | 0,087 | 0,095 | 0,101 |
| S 2 | Ap1 max | 0,3 x D | 25 | – 40 | fz | 0,032 | 0,037 | 0,046 | 0,050 | 0,054 |
| 3 | Ap1 max | 0,3 x D | 60 | – 80 | fz | 0,048 | 0,056 | 0,070 | 0,076 | 0,081 |
| 4 | Ap1 max | 0,3 x D | 50 | – 60 | fz | 0,045 | 0,052 | 0,064 | 0,069 | 0,074 |
| H 1 | Ap1 max | 0,3 x D | 80 | – 140 | fz | 0,054 | 0,062 | 0,077 | 0,083 | 0,088 |
| 2 | Ap1 max | 0,3 x D | 70 | – 120 | fz | 0,040 | 0,047 | 0,057 | 0,061 | 0,065 |
| Series OTE: Lowe Highe i Abov | 77NE • V Side Mi r value of cuttin r value of cuttin i e parameters ar | ariMill III E lling (A) g speed is used g speed is use i e based on ide | R • Wi for high s d for finishi al conditio | th Neck • Fin WS15PE tock removal applica ing applications or fo ns. For smaller taper | ishing • tions or for i r lower har machining | Victory Gr Recommend higher hardness i dness (machinabi centres, please a | ades ed feed per too (machinability) w i lity) within group. djust parameters | th (fz = mm/th) ithin group. i accordingly on > | for side milling 12mm diamete | (A). rs. |
| Material | A | Cutti | ng Speed — vc m/min | D1 — Diameter | ||||||
| Group | ap | ae | min | max | mm | 10,0 | 12,0 | 16,0 | 18,0 | 20,0 |
| 4 | Ap1 max | 0,06 x D | 180 | – 300 | fz | 0,065 | 0,075 | 0,092 | 0,099 | 0,106 |
| P 5 | Ap1 max | 0,06 x D | 120 | – 200 | fz | 0,058 | 0,067 | 0,084 | 0,091 | 0,097 |
| 1 | Ap1 max | 0,06 x D | 180 | – 230 | fz | 0,073 | 0,084 | 0,105 | 0,113 | 0,121 |
| M 2 | Ap1 max | 0,06 x D | 120 | – 160 | fz | 0,058 | 0,067 | 0,084 | 0,091 | 0,097 |
| 3 | Ap1 max | 0,06 x D | 120 | – 140 | fz | 0,048 | 0,056 | 0,068 | 0,073 | 0,078 |
| 1 | Ap1 max | 0,06 x D | 100 | – 180 | fz | 0,073 | 0,084 | 0,105 | 0,113 | 0,121 |
| 2 | Ap1 max | 0,06 x D | 50 | – 80 | fz | 0,038 | 0,045 | 0,056 | 0,060 | 0,065 |
| S 3 | Ap1 max | 0,06 x D | 120 | – 160 | fz | 0,058 | 0,067 | 0,084 | 0,091 | 0,097 |
| 4 | Ap1 max | 0,06 x D | 100 | – 120 | fz | 0,053 | 0,062 | 0,077 | 0,083 | 0,089 |
| 1 | Ap1 max | 0,06 x D | 160 | – 280 | fz | 0,065 | 0,075 | 0,092 | 0,099 | 0,106 |
| H 2 | Ap1 max | 0,06 x D | 140 | – 240 | fz | 0,048 | 0,056 | 0,068 | 0,073 | 0,078 |
