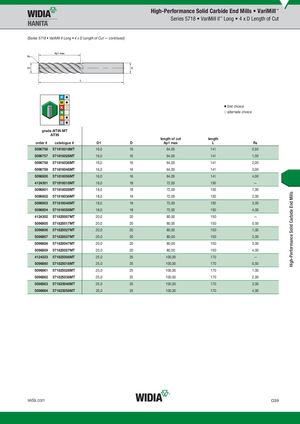

Series 5718 • VariMill II ™ Long • 4 x D Length of Cut
(Series 5718 • VariMill II Long • 4 x D Length of Cut — continued)
first choice alternate choice
| AlTiN-MT grade AlTiN-MT AlTiN | |||||
| order # catalogue # | D1 | D | length of cut Ap1 max | length L | R � |
| 5096756 571816016MT | 16,0 | 16 | 64,00 | 141 | 0,50 |
| 5096757 571816026MT | 16,0 | 16 | 64,00 | 141 | 1,00 |
| 5096758 571816036MT | 16,0 | 16 | 64,00 | 141 | 2,00 |
| 5096759 571816046MT | 16,0 | 16 | 64,00 | 141 | 3,00 |
| 5096800 571816056MT | 16,0 | 16 | 64,00 | 141 | 4,00 |
| 4124301 571818018MT | 18,0 | 18 | 72,00 | 150 | — |
| 5096801 571818028MT | 18,0 | 18 | 72,00 | 150 | 1,00 |
| 5096802 571818038MT | 18,0 | 18 | 72,00 | 150 | 2,00 |
| 5096803 571818048MT | 18,0 | 18 | 72,00 | 150 | 3,00 |
| 5096804 571818058MT | 18,0 | 18 | 72,00 | 150 | 4,00 |
| 4124302 571820007MT | 20,0 | 20 | 80,00 | 150 | — |
| 5096805 571820017MT | 20,0 | 20 | 80,00 | 150 | 0,50 |
| 5096806 571820027MT | 20,0 | 20 | 80,00 | 150 | 1,00 |
| 5096807 571820037MT | 20,0 | 20 | 80,00 | 150 | 2,00 |
| 5096808 571820047MT | 20,0 | 20 | 80,00 | 150 | 3,00 |
| 5096809 571820057MT | 20,0 | 20 | 80,00 | 150 | 4,00 |
| 4124323 571825008MT | 25,0 | 25 | 100,00 | 170 | — |
| 5096860 571825018MT | 25,0 | 25 | 100,00 | 170 | 0,50 |
| 5096861 571825028MT | 25,0 | 25 | 100,00 | 170 | 1,00 |
| 5096862 571825038MT | 25,0 | 25 | 100,00 | 170 | 2,00 |
| 5096863 571825048MT | 25,0 | 25 | 100,00 | 170 | 3,00 |
| 5096864 571825058MT | 25,0 | 25 | 100,00 | 170 | 4,00 |
