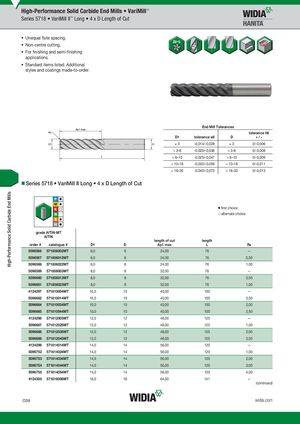

Series 5718 VariMill II™ Long 4 x D Length of Cut

  • Unequal flute spacing.
  • Non-centre cutting.
  • For finishing and semi-finishing applications.
  • Standard items listed. Additional styles and coatings made-to-order.
End Mill Tolerances
D1tolerance e8Dtolerance h6 + / -
�3-0,014/-0,028�30/-0,006
> 3–6-0,020/-0,038> 3–60/-0,008
> 6–10-0,025/-0,047> 6–100/-0,009
> 10–18-0,032/-0,059> 10–180/-0,011
> 18–30-0,040/-0,073> 18–300/-0,013

„ Series 5718 VariMill II Long 4 x D Length of Cut

first choice alternate choice

grade AlTiN-MTAlTiN-MT AlTiN

AlTiN-MT grade AlTiN-MT AlTiN order # catalogue #D1Dlength of cut Ap1 maxlength LR �
5096566 571806002MT6,0624,0076—
5096567 571806012MT6,0624,00760,50
5096568 571806022MT6,0624,00761,00
5096569 571808003MT8,0832,0076—
5096660 571808013MT8,0832,00760,50
5096661 571808023MT8,0832,00761,00
4124297 571810004MT10,01040,00100—
5096662 571810014MT10,01040,001000,50
5096664 571810034MT10,01040,001002,00
5096665 571810044MT10,01040,001002,50
4124298 571812005MT12,01248,00125—
5096667 571812025MT12,01248,001251,00
5096668 571812035MT12,01248,001252,00
5096669 571812045MT12,01248,001252,50
4124299 571814014MT14,01456,00120—
5096752 571814024MT14,01456,001201,00
5096753 571814034MT14,01456,001202,00
5096754 571814044MT14,01456,001203,00
5096755 571814054MT14,01456,001204,00
4124300 571816006MT16,01664,00141—
