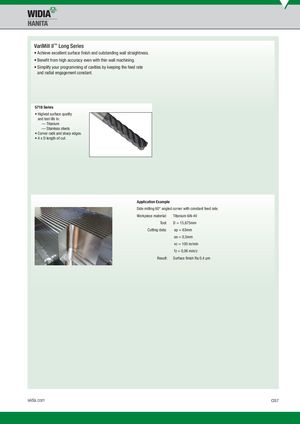

VariMill II™ Long Series
- Achieve excellent surface fi nish and outstanding wall straightness.
- Benefi t from high accuracy even with thin wall machining.
- Simplify your programming of cavities by keeping the feed rate and radial engagement constant.
5718 Series
- Highest surface quality and tool life in: — Titanium — Stainless steels
- Corner radii and sharp edges.
- 4 x D length of cut.
Application Example Side milling 60° angled corner with constant feed rate.
| Workpiece material: | Titanium 6Al-4V |
| Tool: | D = 15,875mm |
| Cutting data: | ap = 63mm |
| ae = 0,5mm | |
| vc = 100 m/min | |
| fz = 0,06 mm/z | |
| Result: | Surface fi nish Ra 0,4 μm |
