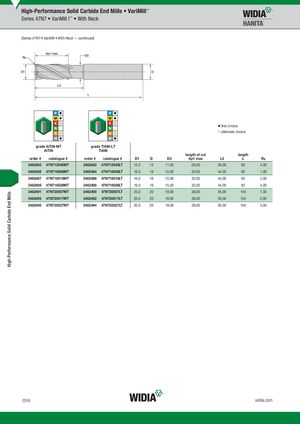

Series 47N7 • VariMill I™ • With Neck
(Series 47N7 • VariMill • With Neck — continued)
| �first ch �alterna | i oice te choice | |||||||
| AlTiN-MT grade AlTiN-MT AlTiN order # catalogue # | TiAlN-LT grade TiAlN-LT TiAlN order # catalogue # | D1 | D | D3 | length of cut Ap1 max | L3 | length L | R � |
| 3462483 47N712045MT | 3462482 47N712045LT | 12,0 | 12 | 11,50 | 26,00 | 38,00 | 83 | 4,00 |
| 3462485 47N716006MT | 3462484 47N716006LT | 16,0 | 16 | 15,00 | 32,00 | 44,00 | 92 | 1,00 |
| 3462487 47N716016MT | 3462486 47N716016LT | 16,0 | 16 | 15,00 | 32,00 | 44,00 | 92 | 2,00 |
| 3462489 47N716026MT | 3462488 47N716026LT | 16,0 | 16 | 15,00 | 32,00 | 44,00 | 92 | 4,00 |
| 3462491 47N720007MT | 3462490 47N720007LT | 20,0 | 20 | 19,00 | 38,00 | 55,00 | 104 | 1,00 |
| 3462493 47N720017MT | 3462492 47N720017LT | 20,0 | 20 | 19,00 | 38,00 | 55,00 | 104 | 2,00 |
| 3462495 47N720027MT | 3462494 47N720027LT | 20,0 | 20 | 19,00 | 38,00 | 55,00 | 104 | 4,00 |
