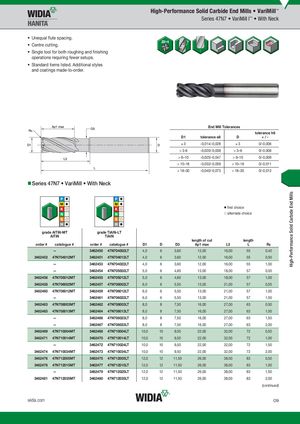

Общий каталог Widia 2017 - страница 1069

Предыдущая страница Следующая страница

Навигация

Series 47N7 VariMill I™ With Neck

  • Unequal flute spacing.
  • Centre cutting.
  • Single tool for both roughing and finishing operations requiring fewer setups.
  • Standard items listed. Additional styles and coatings made-to-order.

End Mill Tolerances tolerance h6

D1tolerance e8D+ / -
) 3-0,014/-0,028) 30/-0,006
> 3-6-0,020/-0,038> 3–60/-0,008
> 6–10-0,025/-0,047> 6–100/-0,009
> 10–18-0,032/-0,059> 10–180/-0,011
> 18–30-0,040/-0,073> 18–300/-0,013

„ Series 47N7 VariMill With Neck

first choice alternate choice

grade AlTiN-MTAlTiN-MT grade TiAlN-LTTiAlN-LT AlTiN TiAlN length of cut length

order # catalogue # order # catalogue # D1 D D3 Ap1 max L3 L R¡

  • 3462450 47N704002LT 4,0 6 3,60 12,00 16,00 55 0,40

3462452 47N704012MT 3462451 47N704012LT 4,0 6 3,60 12,00 16,00 55 0,50

  • 3462453 47N704022LT 4,0 6 3,60 12,00 16,00 55 1,00
  • 3462454 47N705002LT 5,0 6 4,60 13,00 18,00 57 0,50
3462456 47N705012MT3462455 47N705012LT5,064,6013,0018,00571,00
3462458 47N706002MT3462457 47N706002LT6,065,5013,0021,00570,50
3462460 47N706012MT3462459 47N706012LT6,065,5013,0021,00571,00
  • 3462461 47N706022LT 6,0 6 5,50 13,00 21,00 57 1,50
3462463 47N708003MT3462462 47N708003LT8,087,5016,0027,00630,50
3462465 47N708013MT3462464 47N708013LT8,087,5016,0027,00631,00
  • 3462466 47N708023LT 8,0 8 7,50 16,00 27,00 63 1,50
  • 3462467 47N708033LT 8,0 8 7,50 16,00 27,00 63 2,00
3462469 47N710004MT3462468 47N710004LT10,0109,5022,0032,00720,50
3462471 47N710014MT3462470 47N710014LT10,0109,5022,0032,00721,00
  • 3462472 47N710024LT 10,0 10 9,50 22,00 32,00 72 1,50
3462474 47N710034MT3462473 47N710034LT10,0109,5022,0032,00722,00
3462476 47N712005MT3462475 47N712005LT12,01211,5026,0038,00830,50
3462478 47N712015MT3462477 47N712015LT12,01211,5026,0038,00831,00
  • 3462479 47N712025LT 12,0 12 11,50 26,00 38,00 83 1,50

3462481 47N712035MT 3462480 47N712035LT 12,0 12 11,50 26,00 38,00 83 2,00

(continued)
