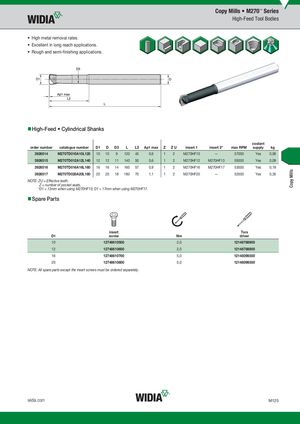

- High metal removal rates.
- Excellent in long reach applications.
- Rough and semi-finishing applications.
- High-Feed Cylindrical Shanks
coolant
| order number | catalogue number | D1 | D | D3 | L | L2 | Ap1 max | Z | Z U | insert 1 | insert 2* | max RPM | supply | kg | |||
| 3926514 | M270TD010A10L120 | 10 | 10 | 9 | 120 | 45 | 0,6 | 1 | 2 | M270HF10 | — | 57000 | Yes | 0,06 | |||
| 3926515 | M270TD012A12L140 | 12 | 12 | 11 | 140 | 50 | 0,6 | 1 | 2 | M270HF12 | M270HF13 | 55000 | Yes | 0,09 | |||
| 3926516 | M270TD016A16L160 | 16 | 16 | 14 | 160 | 57 | 0,9 | 1 | 2 | M270HF16 | M270HF17 | 53000 | Yes | 0,19 | |||
| 3926517 | M270TD020A20L180 | 20 | 20 | 18 | 180 | 70 | 1,1 | 1 | 2 | M270HF20 | — | 52000 | Yes | 0,35 |
NOTE: ZU = Effective teeth. Z = number of pocket seats. *D1 = 13mm when using M270HF13; D1 = 17mm when using M270HF17.
- Spare Parts
insert Torx
| D1 | screw | Nm | driver | ||
| 10 | 12748610500 | 2,0 | 12148788900 | ||
| 12 | 12748610600 | 2,0 | 12148788900 | ||
| 16 | 12748610700 | 5,0 | 12148099300 | ||
| 20 | 12748610800 | 5,0 | 12148099300 |
NOTE: All spare parts except the insert screws must be ordered separately.
