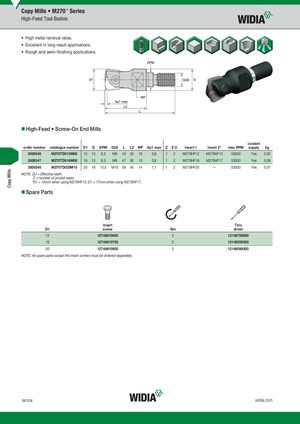

- High metal removal rates.
- Excellent in long reach applications.
- Rough and semi-finishing applications.
- High-Feed Screw-On End Mills
coolant
| order number | catalogue number | D1 | D | DPM | G3X | L | L2 | WF | Ap1 max | Z | Z U | insert 1 | insert 2* | max RPM | supply | kg | |||
| 3926546 | M270TD012M08 | 12 | 13 | 8,5 | M8 | 42 | 25 | 10 | 0,6 | 1 | 2 | M270HF12 | M270HF13 | 55000 | Yes | 0,02 | |||
| 3926547 | M270TD016M08 | 16 | 13 | 8,5 | M8 | 47 | 30 | 10 | 0,9 | 1 | 2 | M270HF16 | M270HF17 | 53000 | Yes | 0,09 | |||
| 3926548 | M270TD020M10 | 20 | 18 | 10,5 | M10 | 59 | 40 | 14 | 1,1 | 1 | 2 | M270HF20 | — | 52000 | Yes | 0,07 |
NOTE: ZU = Effective teeth. Z = number of pocket seats. *D1 = 13mm when using M270HF13; D1 = 17mm when using M270HF17.
- Spare Parts
insert Torx
| D1 | screw | Nm | driver | ||
| 12 | 12748610600 | 2 | 12148788900 | ||
| 16 | 12748610700 | 5 | 12148099300 | ||
| 20 | 12748610800 | 5 | 12148099300 |
NOTE: All spare parts except the insert screws must be ordered separately.
