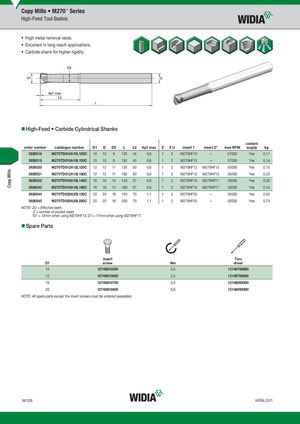

- High metal removal rates.
- Excellent in long reach applications.
- Carbide shank for higher rigidity.
- High-Feed Carbide Cylindrical Shanks
| order number | catalogue number | D1 | D | D3 | L | L2 | Ap1 max | Z Z U | insert 1 | insert 2 | max RPM | coolant supply | kg |
| 3926518 | M270TD010A10L120C | 10 | 10 | 9 | 120 | 45 | 0,6 | 1 2 | M270HF10 | — | 57000 | Yes | 0,11 |
| 3926519 | M270TD010A10L150C | 10 | 10 | 9 | 150 | 45 | 0,6 | 1 2 | M270HF10 | — | 57000 | Yes | 0,14 |
| 3926520 | M270TD012A12L120C | 12 | 12 | 11 | 120 | 50 | 0,6 | 1 2 | M270HF12 | M270HF13 | 55000 | Yes | 0,15 |
| 3926521 | M270TD012A12L160C | 12 | 12 | 11 | 160 | 50 | 0,6 | 1 2 | M270HF12 | M270HF13 | 55000 | Yes | 0,22 |
| 3926522 | M270TD016A16L140C | 16 | 16 | 14 | 140 | 57 | 0,9 | 1 2 | M270HF16 | M270HF17 | 53000 | Yes | 0,32 |
| 3926543 | M270TD016A16L180C | 16 | 16 | 14 | 180 | 57 | 0,9 | 1 2 | M270HF16 | M270HF17 | 53000 | Yes | 0,44 |
| 3926544 | M270TD020A20L150C | 20 | 20 | 18 | 150 | 70 | 1,1 | 1 2 | M270HF20 | — | 52000 | Yes | 0,52 |
| 3926545 | M270TD020A20L200C | 20 | 20 | 18 | 200 | 70 | 1,1 | 1 2 | M270HF20 | — | 52000 | Yes | 0,74 |
Z = number of pocket seats. *D1 = 13mm when using M270HF13; D1 = 17mm when using M270HF17.
- Spare Parts
insert Torx
D1 screw Nm driver
| D1 | insert screw | Nm | Torx driver |
| 10 | 12748610500 | 2,0 | 12148788900 |
| 12 | 12748610600 | 2,0 | 12148788900 |
| 16 | 12748610700 | 5,0 | 12148099300 |
| 20 | 12748610800 | 5,0 | 12148099300 |
