- Rough, semi-finishing, and finishing with one system.
- Through tool coolant.
- Carbide shank to improve rigidity.

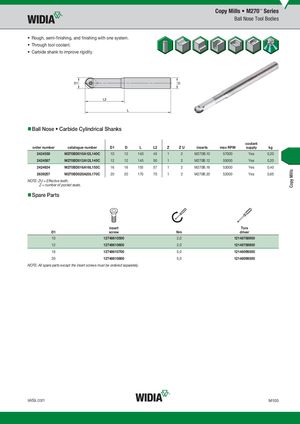

- Ball Nose Carbide Cylindrical Shanks
| order number | catalogue number | D1 | D | L | L2 | Z | Z U | inserts | max RPM | coolant supply | kg |
| 2424550 | M270BD010A12L140C | 10 | 12 | 140 | 45 | 1 | 2 | M270B.10 | 57000 | Yes | 0,20 |
| 2424587 | M270BD012A12L145C | 12 | 12 | 145 | 50 | 1 | 2 | M270B.12 | 55000 | Yes | 0,20 |
| 2424634 | M270BD016A16L155C | 16 | 16 | 155 | 57 | 1 | 2 | M270B.16 | 53000 | Yes | 0,40 |
| 2639257 | M270BD020A20L170C | 20 | 20 | 170 | 70 | 1 | 2 | M270B.20 | 52000 | Yes | 0,65 |
NOTE: ZU = Effective teeth. Z = number of pocket seats.
- Spare Parts
insert Torx
D1 screw Nm driver
| D1 | insert screw | Nm | Torx driver |
| 10 | 12748610500 | 2,0 | 12148788900 |
| 12 | 12748610600 | 2,0 | 12148788900 |
| 16 | 12748610700 | 5,0 | 12148099300 |
| 20 | 12748610800 | 5,0 | 12148099300 |
