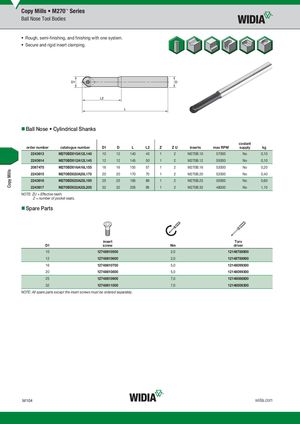

- Rough, semi-finishing, and finishing with one system.
- Secure and rigid insert clamping.
- Ball Nose Cylindrical Shanks
| order number | catalogue number | D1 | D | L | L2 | Z | Z U | inserts | max RPM | coolant supply | kg |
| 2243613 | M270BD010A12L140 | 10 | 12 | 140 | 45 | 1 | 2 | M270B.10 | 57000 | No | 0,10 |
| 2243614 | M270BD012A12L145 | 12 | 12 | 145 | 50 | 1 | 2 | M270B.12 | 55000 | No | 0,10 |
| 2067470 | M270BD016A16L155 | 16 | 16 | 155 | 57 | 1 | 2 | M270B.16 | 53000 | No | 0,20 |
| 2243615 | M270BD020A20L170 | 20 | 20 | 170 | 70 | 1 | 2 | M270B.20 | 52000 | No | 0,40 |
| 2243616 | M270BD025A25L195 | 25 | 25 | 195 | 89 | 1 | 2 | M270B.25 | 50000 | No | 0,60 |
| 2243617 | M270BD032A32L205 | 32 | 32 | 205 | 95 | 1 | 2 | M270B.32 | 46000 | No | 1,10 |
NOTE: ZU = Effective teeth. Z = number of pocket seats.
- Spare Parts
insert Torx
D1 screw Nm driver
| D1 | insert screw | Nm | Torx driver |
| 10 | 12748610500 | 2,0 | 12148788900 |
| 12 | 12748610600 | 2,0 | 12148788900 |
| 16 | 12748610700 | 5,0 | 12148099300 |
| 20 | 12748610800 | 5,0 | 12148099300 |
| 25 | 12748610900 | 7,0 | 12148086800 |
| 32 | 12748611000 | 7,0 | 12146006300 |
