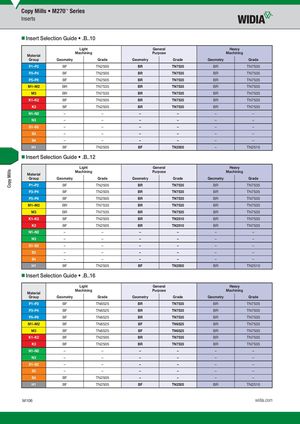

Общий каталог Widia 2017 - страница 1010
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
| Material | Lig Mach | ht ining | Gen Purp | eral ose | He Mach | avy ining |
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| P3–P4 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| P5–P6 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| M1–M2 | BR | TN7535 | BR | TN7535 | BR | TN7535 |
| M3 | BR | TN7535 | BR | TN7535 | BR | TN7535 |
| K1–K2 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| K3 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | BF | TN2505 | BF | TN2505 | – | TN2510 |
- Insert Selection Guide • .B..12
| Material | Lig Mach | ht ining | Gen Purp | eral ose | He Mac | avy hining |
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| P3–P4 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| P5–P6 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| M1–M2 | BR | TN7535 | BR | TN7535 | BR | TN7535 |
| M3 | BR | TN7535 | BR | TN7535 | BR | TN7535 |
| K1–K2 | BF | TN2505 | BR | TN2510 | BR | TN7535 |
| K3 | BF | TN2505 | BR | TN2510 | BR | TN7535 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | BF | TN2505 | BF | TN2505 | BR | TN2510 |
| Light | General | Heavy | ||
| Machining | Purpose | Machining | ||
| Material |
Group Geometry Grade Geometry Grade Geometry Grade
| Material | Lig Mach | ht ining | Gen Purp | eral ose | He Mac | avy hining |
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | BF | TN6525 | BR | TN7535 | BR | TN7535 |
| P3–P4 | BF | TN6525 | BR | TN7535 | BR | TN7535 |
| P5–P6 | BF | TN6525 | BR | TN7535 | BR | TN7535 |
| M1–M2 | BF | TN6525 | BF | TN6525 | BR | TN7535 |
| M3 | BF | TN6525 | BF | TN6525 | BR | TN7535 |
| K1–K2 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| K3 | BF | TN2505 | BR | TN7535 | BR | TN7535 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | BF | TN2505 | – | – | – | – |
| H1 | BF | TN2505 | BF | TN2505 | BR | TN2510 |
