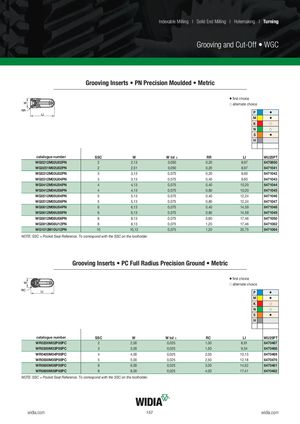

Grooving and Cut-Off • WGC
Grooving Inserts • PN Precision Moulded • Metric
| vfirst choice jalternate ch | oice | ||||||
| P M K N | v v j j | ||||||
| S H | v | ||||||
| catalogue number | SSC | W | W tol ± | RR | LI | WU25PT | |
| WG0212M02U02PN | 2 | 2,13 | 0,050 | 0,20 | 8,97 | 6470850 | |
| WG0251M02U02PN | 2 | 2,51 | 0,050 | 0,20 | 8,97 | 6471041 | |
| WG0312M03U02PN | 3 | 3,13 | 0,075 | 0,20 | 9,60 | 6471042 | |
| WG0312M03U04PN | 3 | 3,13 | 0,075 | 0,40 | 9,60 | 6471043 | |
| WG0412M04U04PN | 4 | 4,13 | 0,075 | 0,40 | 10,20 | 6471044 | |
| WG0412M04U08PN | 4 | 4,13 | 0,075 | 0,80 | 10,20 | 6471045 | |
| WG0512M05U04PN | 5 | 5,13 | 0,075 | 0,40 | 12,24 | 6471046 | |
| WG0512M05U08PN | 5 | 5,13 | 0,075 | 0,80 | 12,24 | 6471047 | |
| WG0612M06U04PN | 6 | 6,13 | 0,075 | 0,40 | 14,59 | 6471048 | |
| WG0612M06U08PN | 6 | 6,13 | 0,075 | 0,80 | 14,59 | 6471049 | |
| WG0812M08U08PN | 8 | 8,13 | 0,075 | 0,80 | 17,46 | 6471050 | |
| WG0812M08U12PN | 8 | 8,13 | 0,075 | 1,20 | 17,46 | 6471062 | |
| WG1012M10U12PN | 10 | 10,13 | 0,075 | 1,20 | 20,75 | 6471064 |
NOTE: SSC = Pocket Seat Reference. To correspond with the SSC on the toolholder.
Grooving Inserts • PC Full Radius Precision Ground • Metric
| vfirst choice jalternate choice | ||||||
| P | v | |||||
| M | v | |||||
| K | j | |||||
| N | j | |||||
| S H | v | |||||
| catalogue number | SSC | W | W tol ± | RC | LI | WU25PT |
| WR0200M02P00PC | 2 | 2,00 | 0,025 | 1,00 | 8,91 | 6470467 |
| WR0300M03P00PC | 3 | 3,00 | 0,025 | 1,50 | 9,54 | 6470468 |
| WR0400M04P00PC | 4 | 4,00 | 0,025 | 2,00 | 10,13 | 6470469 |
| WR0500M05P00PC | 5 | 5,00 | 0,025 | 2,50 | 12,18 | 6470470 |
| WR0600M06P00PC | 6 | 6,00 | 0,025 | 3,00 | 14,52 | 6470481 |
| WR0800M08P00PC | 8 | 8,00 | 0,025 | 4,00 | 17,41 | 6470482 |
NOTE: SSC = Pocket Seat Reference. To correspond with the SSC on the toolholder.
