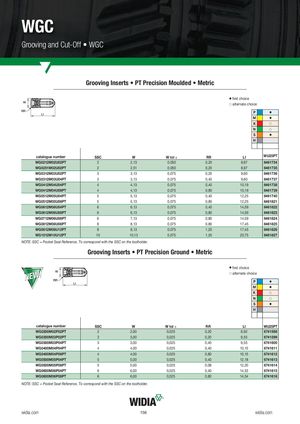

Grooving and Cut-Off • WGC
Grooving Inserts • PT Precision Moulded • Metric
| vfirst choice jalternate ch | oice | ||||||
| P | v | ||||||
| M K N | v j j | ||||||
| S H | v | ||||||
| catalogue number | SSC | W | W tol ± | RR | LI | WU25PT | |
| WG0212M02U02PT | 2 | 2,13 | 0,050 | 0,20 | 8,97 | 6461734 | |
| WG0251M02U02PT | 2 | 2,51 | 0,050 | 0,20 | 8,97 | 6461735 | |
| WG0312M03U02PT | 3 | 3,13 | 0,075 | 0,20 | 9,60 | 6461736 | |
| WG0312M03U04PT | 3 | 3,13 | 0,075 | 0,40 | 9,60 | 6461737 | |
| WG0412M04U04PT | 4 | 4,13 | 0,075 | 0,40 | 10,19 | 6461738 | |
| WG0412M04U08PT | 4 | 4,13 | 0,075 | 0,80 | 10,19 | 6461739 | |
| WG0512M05U04PT | 5 | 5,13 | 0,075 | 0,40 | 12,25 | 6461740 | |
| WG0512M05U08PT | 5 | 5,13 | 0,075 | 0,80 | 12,25 | 6461821 | |
| WG0612M06U04PT | 6 | 6,13 | 0,075 | 0,40 | 14,59 | 6461822 | |
| WG0612M06U08PT | 6 | 6,13 | 0,075 | 0,80 | 14,59 | 6461823 | |
| WG0712M06U08PT | 6 | 7,13 | 0,075 | 0,80 | 14,59 | 6461824 | |
| WG0812M08U08PT | 8 | 8,13 | 0,075 | 0,80 | 17,45 | 6461825 | |
| WG0812M08U12PT | 8 | 8,13 | 0,075 | 1,20 | 17,45 | 6461826 | |
| WG1012M10U12PT | 10 | 10,13 | 0,075 | 1,20 | 20,75 | 6461827 |
NOTE: SSC = Pocket Seat Reference. To correspond with the SSC on the toolholder.
Grooving Inserts • PT Precision Ground • Metric
| ! | vfirst choice jalternate choice | |||||
| P M | v v | |||||
| K | j | |||||
| N | j | |||||
| S | v | |||||
| H | ||||||
| catalogue number | SSC | W | W tol ± | RR | LI | WU25PT |
| WG0200M02P02PT | 2 | 2,00 | 0,025 | 0,20 | 8,92 | 6741598 |
| WG0300M03P02PT | 3 | 3,00 | 0,025 | 0,20 | 9,55 | 6741599 |
| WG0300M03P04PT | 3 | 3,00 | 0,025 | 0,40 | 9,55 | 6741600 |
| WG0400M04P04PT | 4 | 4,00 | 0,025 | 0,40 | 10,15 | 6741611 |
| WG0400M04P08PT | 4 | 4,00 | 0,025 | 0,80 | 10,15 | 6741612 |
| WG0500M05P04PT | 5 | 5,00 | 0,025 | 0,40 | 12,18 | 6741613 |
| WG0500M05P08PT | 5 | 5,00 | 0,025 | 0,08 | 12,20 | 6741614 |
| WG0600M06P04PT | 6 | 6,00 | 0,025 | 0,40 | 14,53 | 6741615 |
| WG0600M06P08PT | 6 | 6,00 | 0,025 | 0,80 | 14,54 | 6741616 |
NOTE: SSC = Pocket Seat Reference. To correspond with the SSC on the toolholder.
