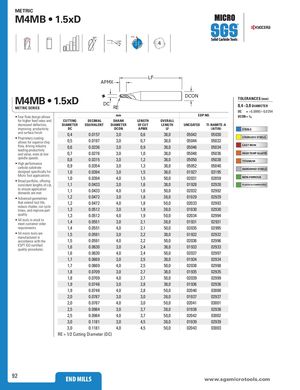

Каталог SGS микро инструмент 2021 - страница 92
Навигация
Каталог SGS фрезы для алюминия S-carb
Каталог SGS монолитный инструмент из композитных материалов
Каталог SGS инструмент для обработки алюминия
Общий каталог SGS 2018
Общий каталог SGS 2021
Каталог SGS фрезы для труднообрабатываемых материалов Series 33
M4MB 1 .5xD
30° POS 15° 4
LF APMX M4MB 1 .5xD DCON TOLERANCES (mm) DC 0,4–3,0
METRIC SERIES RE DIAMETER
DC = +0,0000/–0,0254
| • Four flute design allows | mm | ED | P NO. | DCON =h6 | ||||
| for higher feed rates and decreased deflection, improving productivity | CUTTING DIAMETER DC | DECIMAL EQUIVALENT | SHANK DIAMETER DCON | LENGTH OF CUT APMX | OVERALL LENGTH LF | UNCOATED | TI-NAMITE-A (AlTiN) | STEELS |
| and surface finish. Pi i | 0,4 | 0.0157 | 3,0 | 0,6 | 38,0 | 05042 | 05030 | STAINLESS STEELS |
| • ropretary coatng allows for superior chip | 0,5 | 0.0197 | 3,0 | 0,7 | 38,0 | 05044 | 05032 | |
| flow, driving industry li ii | 0,6 | 0.0236 | 3,0 | 0,9 | 38,0 | 05046 | 05034 | CAST IRON |
| eadng productvty and value, even at low | 0,7 | 0.0276 | 3,0 | 1,0 | 38,0 | 05048 | 05036 | HIGH TEMP ALLOYS |
| spindle speeds. | 0,8 | 0.0315 | 3,0 | 1,2 | 38,0 | 05050 | 05038 | TITANIUM |
| • High performance carbide substrate | 0,9 | 0.0354 | 3,0 | 1,3 | 38,0 | 05052 | 05040 | HARDENED STEELS |
| designed specifically for | 1,0 | 0.0394 | 3,0 | 1,5 | 38,0 | 01927 | 03195 | |
| Micro Tool applications. • Broad portfolio offering | 1,0 | 0.0394 | 4,0 | 1,5 | 50,0 | 02031 | 02859 | NON-FERROUS |
| , consistent lengths of cut, | 1,1 | 0.0433 | 3,0 | 1,6 | 38,0 | 01928 | 02928 | PLASTICS/COMPOSITES |
| to ensure application demands are met. | 1,1 | 0.0433 | 4,0 | 1,6 | 50,0 | 02032 | 02992 | |
| • Advanced geometries | 1,2 | 0.0472 | 3,0 | 1,8 | 38,0 | 01929 | 02929 | |
| that extend tool life, reduce chatter cut ccle | 1,2 | 0.0472 | 4,0 | 1,8 | 50,0 | 02033 | 02993 | |
| , y times, and improve part | 1,3 | 0.0512 | 3,0 | 1,9 | 38,0 | 01930 | 02930 | |
| quality. | 1,3 | 0.0512 | 4,0 | 1,9 | 50,0 | 02034 | 02994 | |
| • All tools in stock to meet customer order | 1,4 | 0.0551 | 3,0 | 2,1 | 38,0 | 01931 | 02931 | |
| requirements. | 1,4 | 0.0551 | 4,0 | 2,1 | 50,0 | 02035 | 02995 | |
| • All micro tools are fd i | 1,5 | 0.0591 | 3,0 | 2,2 | 38,0 | 01932 | 02932 | |
| manuacture n accordance with the | 1,5 | 0.0591 | 4,0 | 2,2 | 50,0 | 02036 | 02996 | |
| KSPT ISO certified quality procedures. | 1,6 | 0.0630 | 3,0 | 2,4 | 38,0 | 01933 | 02933 | |
| 1,6 | 0.0630 | 4,0 | 2,4 | 50,0 | 02037 | 02997 | ||
| 1,7 | 0.0669 | 3,0 | 2,5 | 38,0 | 01934 | 02934 | ||
| 1,7 | 0.0669 | 4,0 | 2,5 | 50,0 | 02038 | 02998 | ||
| 1,8 | 0.0709 | 3,0 | 2,7 | 38,0 | 01935 | 02935 | ||
| 1,8 | 0.0709 | 4,0 | 2,7 | 50,0 | 02039 | 02999 | ||
| 1,9 | 0.0748 | 3,0 | 2,8 | 38,0 | 01936 | 02936 | ||
| 1,9 | 0.0748 | 4,0 | 2,8 | 50,0 | 02040 | 03000 | ||
| 2,0 | 0.0787 | 3,0 | 3,0 | 38,0 | 01937 | 02937 | ||
| 2,0 | 0.0787 | 4,0 | 3,0 | 50,0 | 02041 | 03001 | ||
| 2,5 | 0.0984 | 3,0 | 3,7 | 38,0 | 01938 | 02938 | ||
| 2,5 | 0.0984 | 4,0 | 3,7 | 50,0 | 02042 | 03002 | ||
| 3,0 | 0.1181 | 3,0 | 4,5 | 38,0 | 01939 | 02939 | ||
| 3,0 | 0.1181 | 4,0 | 4,5 | 50,0 | 02043 | 03003 |
RE = 1/2 Cutting Diameter (DC)
