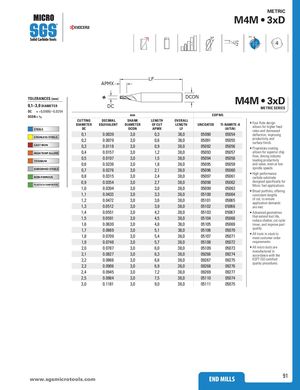

30° POS 15° 4
| LF | ||||||||
| TOLERANCES(mm) | APMX | DC | ON | M | 4M • 3xD | |||
| 0,1–3,0DIAMETER DC =+0,0000/–0,0254 | DC | METRIC SERIES | ||||||
| DCON =h6 | mm | EDP | NO. | |||||
| STEELS | CUTTING DIAMETER DC | DECIMAL EQUIVALENT | SHANK DIAMETER DCON | LENGTH OF CUT APMX | OVERALL LENGTH LF | UNCOATED | TI-NAMITE-A (AlTiN) | • Four flute design allows for higher feed rates and decreased |
| STAINLESS STEELS | 0,1 | 0.0039 | 3,0 | 0,3 | 38,0 | 05090 | 05054 | deflection, improving |
| 0,2 | 0.0079 | 3,0 | 0,6 | 38,0 | 05091 | 05055 | productivity and surface finish | |
| CAST IRON | 0,3 | 0.0118 | 3,0 | 0,9 | 38,0 | 05092 | 05056 | . • Proprietary coating |
| HIGH TEMP ALLOYS | 0,4 | 0.0157 | 3,0 | 1,2 | 38,0 | 05093 | 05057 | allows for superior chip |
| TITANIUM | 0,5 | 0.0197 | 3,0 | 1,5 | 38,0 | 05094 | 05058 | flow, driving industry leading productivity |
| 0,6 | 0.0236 | 3,0 | 1,8 | 38,0 | 05095 | 05059 | and value, even at low | |
| HARDENED STEELS | 0,7 | 0.0276 | 3,0 | 2,1 | 38,0 | 05096 | 05060 | spindle speeds. |
| NON-FERROUS | 0,8 | 0.0315 | 3,0 | 2,4 | 38,0 | 05097 | 05061 | • High performance carbide substrate |
| PLASTICS/COMPOSITES | 0,9 | 0.0354 | 3,0 | 2,7 | 38,0 | 05098 | 05062 | designed specifically for |
| 1,0 | 0.0394 | 3,0 | 3,0 | 38,0 | 05099 | 05063 | Micro Tool applications. • Bd tfli ffi | |
| 1,1 | 0.0433 | 3,0 | 3,3 | 38,0 | 05100 | 05064 | roa poroo, oerng consistent lengths | |
| 1,2 | 0.0472 | 3,0 | 3,6 | 38,0 | 05101 | 05065 | of cut, to ensure lii | |
| 1,3 | 0.0512 | 3,0 | 3,9 | 38,0 | 05102 | 05066 | appcaton demands are met. | |
| 1,4 | 0.0551 | 3,0 | 4,2 | 38,0 | 05103 | 05067 | • Advanced geometries | |
| 1,5 | 0.0591 | 3,0 | 4,5 | 38,0 | 05104 | 05068 | that extend tool life, reduce chatter cut cycle | |
| 1,6 | 0.0630 | 3,0 | 4,8 | 38,0 | 05105 | 05069 | , times, and improve part | |
| 1,7 | 0.0669 | 3,0 | 5,1 | 38,0 | 05106 | 05070 | quality. | |
| 1,8 | 0.0709 | 3,0 | 5,4 | 38,0 | 05107 | 05071 | • All tools in stock to meet customer order | |
| 1,9 | 0.0748 | 3,0 | 5,7 | 38,0 | 05108 | 05072 | requirements. | |
| 2,0 | 0.0787 | 3,0 | 6,0 | 38,0 | 05109 | 05073 | • All micro tools are | |
| 2,1 | 0.0827 | 3,0 | 6,3 | 38,0 | 09266 | 09274 | manufactured in accordance with the | |
| 2,2 | 0.0866 | 3,0 | 6,6 | 38,0 | 09267 | 09275 | KSPT ISO certified | |
| 2,3 | 0.0906 | 3,0 | 6,9 | 38,0 | 09268 | 09276 | quality procedures. | |
| 2,4 | 0.0945 | 3,0 | 7,2 | 38,0 | 09269 | 09277 | ||
| 2,5 | 0.0984 | 3,0 | 7,5 | 38,0 | 05110 | 05074 | ||
| 3,0 | 0.1181 | 3,0 | 9,0 | 38,0 | 05111 | 05075 |
