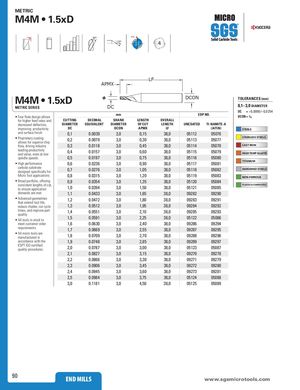

M4M 1 .5xD
30° POS 15° 4
| M4M • 1 . | .5xD | AP | MX | LF | DCON | TOLERANCES(mm) | ||
| . METRIC SERIES | . | DC | 0,1–3,0DIAMETER DC 00000/–00254 | |||||
| • Four flute design allows | mm | ED | P NO. | =+,, DCON =h6 | ||||
| for higher feed rates and decreased deflection, improving productivity | CUTTING DIAMETER DC | DECIMAL EQUIVALENT | SHANK DIAMETER DCON | LENGTH OF CUT APMX | OVERALL LENGTH LF | UNCOATED | TI-NAMITE-A (AlTiN) | STEELS |
| and surface finish. | 0,1 | 0.0039 | 3,0 | 0,15 | 38,0 | 05112 | 05076 | |
| • Proprietary coating allows for superior chip | 0,2 | 0.0079 | 3,0 | 0,30 | 38,0 | 05113 | 05077 | STAINLESS STEELS |
| flow, driving industry | 0,3 | 0.0118 | 3,0 | 0,45 | 38,0 | 05114 | 05078 | CAST IRON |
| leading productivity and value even at low | 0,4 | 0.0157 | 3,0 | 0,60 | 38,0 | 05115 | 05079 | HIGH TEMP ALLOYS |
| , spindle speeds. | 0,5 | 0.0197 | 3,0 | 0,75 | 38,0 | 05116 | 05080 | |
| • High performance | 0,6 | 0.0236 | 3,0 | 0,90 | 38,0 | 05117 | 05081 | TITANIUM |
| carbide substrate designed specifically for | 0,7 | 0.0276 | 3,0 | 1,05 | 38,0 | 05118 | 05082 | HARDENED STEELS |
| Micro Tool applications. | 0,8 | 0.0315 | 3,0 | 1,20 | 38,0 | 05119 | 05083 | NON-FERROUS |
| • Broad portfolio, offering | 0,9 | 0.0354 | 3,0 | 1,35 | 38,0 | 05120 | 05084 | |
| consistent lengths of cut, to ensure application | 1,0 | 0.0394 | 3,0 | 1,50 | 38,0 | 05121 | 05085 | PLASTICS/COMPOSITES |
| demands are met. | 1,1 | 0.0433 | 3,0 | 1,65 | 38,0 | 09282 | 09290 | |
| • Advanced geometries that extend tool life | 1,2 | 0.0472 | 3,0 | 1,80 | 38,0 | 09283 | 09291 | |
| , reduce chatter, cut cycle | 1,3 | 0.0512 | 3,0 | 1,95 | 38,0 | 09284 | 09292 | |
| times, and improve part ualit | 1,4 | 0.0551 | 3,0 | 2,10 | 38,0 | 09285 | 09293 | |
| qy. • All tools in stock to | 1,5 | 0.0591 | 3,0 | 2,25 | 38,0 | 05122 | 05086 | |
| meet customer order | 1,6 | 0.0630 | 3,0 | 2,40 | 38,0 | 09286 | 09294 | |
| requirements. | 1,7 | 0.0669 | 3,0 | 2,55 | 38,0 | 09287 | 09295 | |
| • All micro tools are manufactured in | 1,8 | 0.0709 | 3,0 | 2,70 | 38,0 | 09288 | 09296 | |
| accordance with the | 1,9 | 0.0748 | 3,0 | 2,85 | 38,0 | 09289 | 09297 | |
| KSPT ISO certified quality procedures. | 2,0 | 0.0787 | 3,0 | 3,00 | 38,0 | 05123 | 05087 | |
| 2,1 | 0.0827 | 3,0 | 3,15 | 38,0 | 09270 | 09278 | ||
| 2,2 | 0.0866 | 3,0 | 3,30 | 38,0 | 09271 | 09279 | ||
| 2,3 | 0.0906 | 3,0 | 3,45 | 38,0 | 09272 | 09280 | ||
| 2,4 | 0.0945 | 3,0 | 3,60 | 38,0 | 09273 | 09281 | ||
| 2,5 | 0.0984 | 3,0 | 3,75 | 38,0 | 05124 | 05088 | ||
| 3,0 | 0.1181 | 3,0 | 4,50 | 38,0 | 05125 | 05089 |
