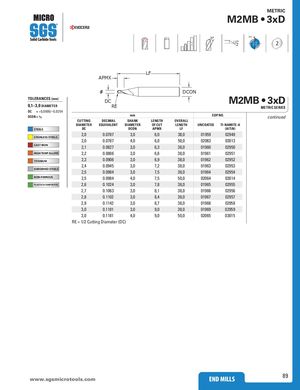

30° POS 15° 2
LF APMX DCON TOLERANCES M2MB • 3xD (mm) DC 0,1–3,0 DIAMETER RE METRIC SERIES DC = +0,0000/–0,0254
| DCON = h | mm | EDP NO. | continued | |
| 6 |
| CUTTING | DECIMAL | SHANK | LENGTH | OVERALL | ||
| DIAMETER | EQUIVALENT | DIAMETER | OF CUT | LENGTH | UNCOATED | TI-NAMITE-A |
| STEELS | DC | DCON | APMX | LF | (AlTiN) | ||
| 2,0 | 0.0787 | 3,0 | 6,0 | 38,0 | 01959 | 02949 | |
| STAINLESS STEELS | 2,0 | 0.0787 | 4,0 | 6,0 | 50,0 | 02063 | 03013 |
| CAST IRON | 2,1 | 0.0827 | 3,0 | 6,3 | 38,0 | 01960 | 02950 |
| HIGH TEMP ALLOYS | 2,2 | 0.0866 | 3,0 | 6,6 | 38,0 | 01961 | 02951 |
| 2,3 | 0.0906 | 3,0 | 6,9 | 38,0 | 01962 | 02952 | |
| TITANIUM | |||||||
| 2,4 | 0.0945 | 3,0 | 7,2 | 38,0 | 01963 | 02953 | |
| HARDENED STEELS | 2,5 | 0.0984 | 3,0 | 7,5 | 38,0 | 01964 | 02954 |
| NON-FERROUS | 2,5 | 0.0984 | 4,0 | 7,5 | 50,0 | 02064 | 03014 |
| 2,6 | 0.1024 | 3,0 | 7,8 | 38,0 | 01965 | 02955 | |
| PLASTICS/COMPOSITES | |||||||
| 2,7 | 0.1063 | 3,0 | 8,1 | 38,0 | 01966 | 02956 | |
| 2,8 | 0.1102 | 3,0 | 8,4 | 38,0 | 01967 | 02957 | |
| 2,9 | 0.1142 | 3,0 | 8,7 | 38,0 | 01968 | 02958 | |
| 3,0 | 0.1181 | 3,0 | 9,0 | 38,0 | 01969 | 02959 | |
| 3,0 | 0.1181 | 4,0 | 9,0 | 50,0 | 02065 | 03015 |
RE = 1/2 Cutting Diameter (DC)
