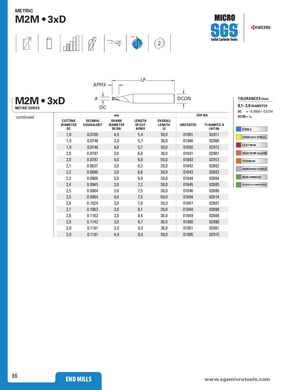

30° POS 15° 2
| M2M • 3 | xD | APMX | LF | DCON | TOLERANCES(mm) | |||
| METRIC SERIES | DC | 0,1–3,0DIAMETER DC =+0,0000/–0,0254 | ||||||
| continued | mm | ED | P NO. | DCON =h6 | ||||
| CUTTING DIAMETER DC | DECIMAL EQUIVALENT | SHANK DIAMETER DCON | LENGTH OF CUT APMX | OVERALL LENGTH LF | UNCOATED | TI-NAMITE-A (AlTiN) | STEELS | |
| 1,8 | 0.0709 | 4,0 | 5,4 | 50,0 | 01891 | 02911 | STAINLESS STEELS | |
| 1,9 | 0.0748 | 3,0 | 5,7 | 38,0 | 01840 | 02880 | ||
| 1,9 | 0.0748 | 4,0 | 5,7 | 50,0 | 01892 | 02912 | CAST IRON | |
| 2,0 | 0.0787 | 3,0 | 6,0 | 38,0 | 01841 | 02881 | HIGH TEMP ALLOYS | |
| 2,0 | 0.0787 | 4,0 | 6,0 | 50,0 | 01893 | 02913 | TITANIUM | |
| 2,1 | 0.0827 | 3,0 | 6,3 | 38,0 | 01842 | 02882 | HARDENED STEELS | |
| 2,2 | 0.0866 | 3,0 | 6,6 | 38,0 | 01843 | 02883 | ||
| 2,3 | 0.0906 | 3,0 | 6,9 | 38,0 | 01844 | 02884 | NON-FERROUS | |
| 2,4 | 0.0945 | 3,0 | 7,2 | 38,0 | 01845 | 02885 | PLASTICS/COMPOSITES | |
| 2,5 | 0.0984 | 3,0 | 7,5 | 38,0 | 01846 | 02886 | ||
| 2,5 | 0.0984 | 4,0 | 7,5 | 50,0 | 01894 | 02914 | ||
| 2,6 | 0.1024 | 3,0 | 7,8 | 38,0 | 01847 | 02887 | ||
| 2,7 | 0.1063 | 3,0 | 8,1 | 38,0 | 01848 | 02888 | ||
| 2,8 | 0.1102 | 3,0 | 8,4 | 38,0 | 01849 | 02889 | ||
| 2,9 | 0.1142 | 3,0 | 8,7 | 38,0 | 01850 | 02890 | ||
| 3,0 | 0.1181 | 3,0 | 9,0 | 38,0 | 01851 | 02891 | ||
| 3,0 | 0.1181 | 4,0 | 9,0 | 50,0 | 01895 | 02915 |
