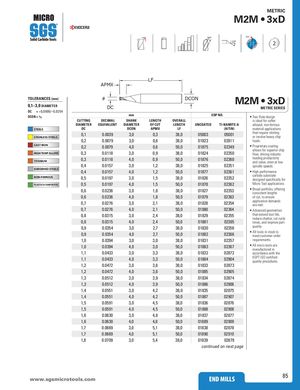

Каталог SGS микро инструмент 2021 - страница 85
Навигация
Каталог SGS фрезы для алюминия S-carb
Каталог SGS монолитный инструмент из композитных материалов
Каталог SGS инструмент для обработки алюминия
Общий каталог SGS 2018
Общий каталог SGS 2021
Каталог SGS фрезы для труднообрабатываемых материалов Series 33
30° POS 15° 2
| TOLERANCES(mm) | APMX | LF | D | CON | |||
| 0,1–3,0DIAMETER DC =+0,0000/–0,0254 | DC | ||||||
| DCON =h6 | mm | ED | P NO. | ||||
| STEELS | CUTTING DIAMETER DC | DECIMAL EQUIVALENT | SHANK DIAMETER DCON | LENGTH OF CUT APMX | OVERALL LENGTH LF | UNCOATED | TI-NAMITE-A (AlTiN) |
| STAINLESS STEELS | 0,1 | 0.0039 | 3,0 | 0,3 | 38,0 | 05003 | 05001 |
| 0,2 | 0.0079 | 3,0 | 0,6 | 38,0 | 01823 | 02811 | |
| CAST IRON | 0,2 | 0.0079 | 4,0 | 0,6 | 50,0 | 01875 | 02349 |
| HIGH TEMP ALLOYS | 0,3 | 0.0118 | 3,0 | 0,9 | 38,0 | 01824 | 02350 |
| TITANIUM | 0,3 | 0.0118 | 4,0 | 0,9 | 50,0 | 01876 | 02360 |
| 0,4 | 0.0157 | 3,0 | 1,2 | 38,0 | 01825 | 02351 | |
| HARDENED STEELS | 0,4 | 0.0157 | 4,0 | 1,2 | 50,0 | 01877 | 02361 |
| NON-FERROUS | 0,5 | 0.0197 | 3,0 | 1,5 | 38,0 | 01826 | 02352 |
| PLASTICS/COMPOSITES | 0,5 | 0.0197 | 4,0 | 1,5 | 50,0 | 01878 | 02362 |
| 0,6 | 0.0236 | 3,0 | 1,8 | 38,0 | 01827 | 02353 | |
| 0,6 | 0.0236 | 4,0 | 1,8 | 50,0 | 01879 | 02363 | |
| 0,7 | 0.0276 | 3,0 | 2,1 | 38,0 | 01828 | 02354 | |
| 0,7 | 0.0276 | 4,0 | 2,1 | 50,0 | 01880 | 02364 | |
| 0,8 | 0.0315 | 3,0 | 2,4 | 38,0 | 01829 | 02355 | |
| 0,8 | 0.0315 | 4,0 | 2,4 | 50,0 | 01881 | 02365 | |
| 0,9 | 0.0354 | 3,0 | 2,7 | 38,0 | 01830 | 02356 | |
| 0,9 | 0.0354 | 4,0 | 2,7 | 50,0 | 01882 | 02366 | |
| 1,0 | 0.0394 | 3,0 | 3,0 | 38,0 | 01831 | 02357 | |
| 1,0 | 0.0394 | 4,0 | 3,0 | 50,0 | 01883 | 02367 | |
| 1,1 | 0.0433 | 3,0 | 3,3 | 38,0 | 01832 | 02872 | |
| 1,1 | 0.0433 | 4,0 | 3,3 | 50,0 | 01884 | 02904 | |
| 1,2 | 0.0472 | 3,0 | 3,6 | 38,0 | 01833 | 02873 | |
| 1,2 | 0.0472 | 4,0 | 3,6 | 50,0 | 01885 | 02905 | |
| 1,3 | 0.0512 | 3,0 | 3,9 | 38,0 | 01834 | 02874 | |
| 1,3 | 0.0512 | 4,0 | 3,9 | 50,0 | 01886 | 02906 | |
| 1,4 | 0.0551 | 3,0 | 4,2 | 38,0 | 01835 | 02875 | |
| 1,4 | 0.0551 | 4,0 | 4,2 | 50,0 | 01887 | 02907 | |
| 1,5 | 0.0591 | 3,0 | 4,5 | 38,0 | 01836 | 02876 | |
| 1,5 | 0.0591 | 4,0 | 4,5 | 50,0 | 01888 | 02908 | |
| 1,6 | 0.0630 | 3,0 | 4,8 | 38,0 | 01837 | 02877 | |
| 1,6 | 0.0630 | 4,0 | 4,8 | 50,0 | 01889 | 02909 | |
| 1,7 | 0.0669 | 3,0 | 5,1 | 38,0 | 01838 | 02878 | |
| 1,7 | 0.0669 | 4,0 | 5,1 | 50,0 | 01890 | 02910 | |
| 1,8 | 0.0709 | 3,0 | 5,4 | 38,0 | 01839 | 02879 |
METRIC SERIES
allows for superior chip
consistent lengths are met.
reduce chatter, cut cycle
meet customer order
manufactured in quality procedures.
continued on next page
