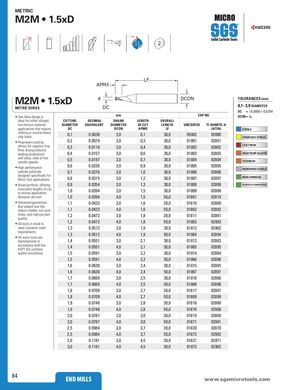

M2M 1 .5xD
30° POS 15° 2
| M2M • 1 . | .5xD | APMX | LF | DCON | TOLERANCES(mm) | |||
| . METRIC SERIES | . | DC | 0,1–3,0DIAMETER DC =+0,0000/–0,0254 | |||||
| f | mm | ED | P NO. | DCONh | ||||
| • Two lute design is ideal for softer alloyed, non-ferrous material | CUTTING DIAMETER | DECIMAL EQUIVALENT | SHANK DIAMETER | LENGTH OF CUT | OVERALL LENGTH | UNCOATED | TI-NAMITE-A | =6 |
| applications that require | DC | DCON | APMX | LF | (AlTiN) | STEELS | ||
| slotting or involve heavy chip loads. | 0,1 | 0.0039 | 3,0 | 0,1 | 38,0 | 05002 | 05000 | STAINLESS STEELS |
| • Proprietary coating | 0,2 | 0.0079 | 3,0 | 0,3 | 38,0 | 01801 | 02801 | |
| allows for superior chip fl dii id | 0,3 | 0.0118 | 3,0 | 0,4 | 38,0 | 01802 | 02802 | CAST IRON |
| ow, rvng nustry leading productivity | 0,4 | 0.0157 | 3,0 | 0,6 | 38,0 | 01803 | 02803 | HIGH TEMP ALLOYS |
| and value, even at low spindle speeds. | 0,5 | 0.0197 | 3,0 | 0,7 | 38,0 | 01804 | 02804 | TITANIUM |
| • High performance | 0,6 | 0.0236 | 3,0 | 0,9 | 38,0 | 01805 | 02805 | HARDENED STEELS |
| carbide substrate | 0,7 | 0.0276 | 3,0 | 1,0 | 38,0 | 01806 | 02806 | |
| designed specifically for Micro Tool applications. | 0,8 | 0.0315 | 3,0 | 1,2 | 38,0 | 01807 | 02807 | NON-FERROUS |
| • Broad portfolio, offering | 0,9 | 0.0354 | 3,0 | 1,3 | 38,0 | 01808 | 02808 | PLASTICS/COMPOSITES |
| consistent lengths of cut, to ensure application | 1,0 | 0.0394 | 3,0 | 1,5 | 38,0 | 01809 | 02809 | |
| demands are met. | 1,0 | 0.0394 | 4,0 | 1,5 | 50,0 | 01861 | 02819 | |
| • Advanced geometries | 1,1 | 0.0433 | 3,0 | 1,6 | 38,0 | 01810 | 02860 | |
| that extend tool life, reduce chatter, cut cycle | 1,1 | 0.0433 | 4,0 | 1,6 | 50,0 | 01862 | 02892 | |
| times, and improve part quality | 1,2 | 0.0472 | 3,0 | 1,8 | 38,0 | 01811 | 02861 | |
| . • All tools in stock to | 1,2 | 0.0472 | 4,0 | 1,8 | 50,0 | 01863 | 02893 | |
| meet customer order | 1,3 | 0.0512 | 3,0 | 1,9 | 38,0 | 01812 | 02862 | |
| requirements. • All micro tools are | 1,3 | 0.0512 | 4,0 | 1,9 | 50,0 | 01864 | 02894 | |
| manufactured in | 1,4 | 0.0551 | 3,0 | 2,1 | 38,0 | 01813 | 02863 | |
| accordance with the KSPT ISO certified | 1,4 | 0.0551 | 4,0 | 2,1 | 50,0 | 01865 | 02895 | |
| quality procedures. | 1,5 | 0.0591 | 3,0 | 2,2 | 38,0 | 01814 | 02864 | |
| 1,5 | 0.0591 | 4,0 | 2,2 | 50,0 | 01866 | 02896 | ||
| 1,6 | 0.0630 | 3,0 | 2,4 | 38,0 | 01815 | 02865 | ||
| 1,6 | 0.0630 | 4,0 | 2,4 | 50,0 | 01867 | 02897 | ||
| 1,7 | 0.0669 | 3,0 | 2,5 | 38,0 | 01816 | 02866 | ||
| 1,7 | 0.0669 | 4,0 | 2,5 | 50,0 | 01868 | 02898 | ||
| 1,8 | 0.0709 | 3,0 | 2,7 | 38,0 | 01817 | 02867 | ||
| 1,8 | 0.0709 | 4,0 | 2,7 | 50,0 | 01869 | 02899 | ||
| 1,9 | 0.0748 | 3,0 | 2,8 | 38,0 | 01818 | 02868 | ||
| 1,9 | 0.0748 | 4,0 | 2,8 | 50,0 | 01870 | 02900 | ||
| 2,0 | 0.0787 | 3,0 | 3,0 | 38,0 | 01819 | 02869 | ||
| 2,0 | 0.0787 | 4,0 | 3,0 | 50,0 | 01871 | 02901 | ||
| 2,5 | 0.0984 | 3,0 | 3,7 | 38,0 | 01820 | 02870 | ||
| 2,5 | 0.0984 | 4,0 | 3,7 | 50,0 | 01872 | 02902 | ||
| 3,0 | 0.1181 | 3,0 | 4,5 | 38,0 | 01821 | 02871 | ||
| 3,0 | 0.1181 | 4,0 | 4,5 | 50,0 | 01873 | 02903 |
