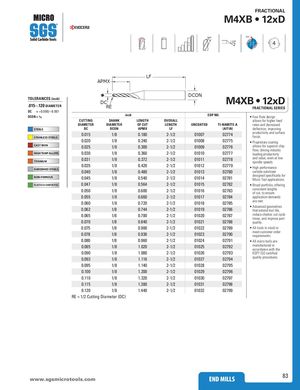

FRACTIONAL M4XB • 12xD POS 30° 15° 4 LF APMX DCON TOLERANCES (inch) .015–.120 DIAMETER DC RE M4XB • 12xD FRACTIONAL SERIES DC = +0.000/–0.001 DCON = h 6 inch EDP NO. • Four flute design CUTTING SHANK LENGTH OVERALL allows for higher feed DIAMETER DIAMETER OF CUT LENGTH UNCOATED TI-NAMITE-A rates and decreased STEELS DC DCON APMX LF (AlTiN) deflection, improving productivity and surface 0.015 1/8 0.180 2-1/2 01007 02774 finish. STAINLESS STEELS 0.020 1/8 0.240 2-1/2 01008 02775 • Proprietary coating CAST IRON allows for superior chip 0.025 1/8 0.300 2-1/2 01009 02776 flow, driving industry HIGH TEMP ALLOYS 0.030 1/8 0.360 2-1/2 01010 02777 leading productivity 0.031 1/8 0.372 2-1/2 01011 02778 and value, even at low TITANIUM spindle speeds. 0.035 1/8 0.420 2-1/2 01012 02779 • High performance HARDENED STEELS 0.040 1/8 0.480 2-1/2 01013 02780 carbide substrate designed specifically for NON-FERROUS 0.045 1/8 0.540 2-1/2 01014 02781 Micro Tool applications. PLASTICS/COMPOSITES 0.047 1/8 0.564 2-1/2 01015 02782 • Broad portfolio, offering consistent lengths 0.050 1/8 0.600 2-1/2 01016 02783 of cut, to ensure 0.055 1/8 0.660 2-1/2 01017 02784 application demands are met. 0.060 1/8 0.720 2-1/2 01018 02785 • Advanced geometries 0.062 1/8 0.744 2-1/2 01019 02786 that extend tool life, 0.065 1/8 0.780 2-1/2 01020 02787 reduce chatter, cut cycle times, and improve part 0.070 1/8 0.840 2-1/2 01021 02788 quality. 0.075 1/8 0.900 2-1/2 01022 02789 • All tools in stock to meet customer order 0.078 1/8 0.936 2-1/2 01023 02790 requirements. 0.080 1/8 0.960 2-1/2 01024 02791 • All micro tools are 0.085 1/8 1.020 2-1/2 01025 02792 manufactured in accordance with the 0.090 1/8 1.080 2-1/2 01026 02793 KSPT ISO certified quality procedures. 0.093 1/8 1.116 2-1/2 01027 02794 0.095 1/8 1.140 2-1/2 01028 02795 0.100 1/8 1.200 2-1/2 01029 02796 0.110 1/8 1.320 2-1/2 01030 02797 0.115 1/8 1.380 2-1/2 01031 02798 0.120 1/8 1.440 2-1/2 01032 02799 RE = 1/2 Cutting Diameter (DC) 83 END MILLS www.sgsmicrotools.com END MILLS
