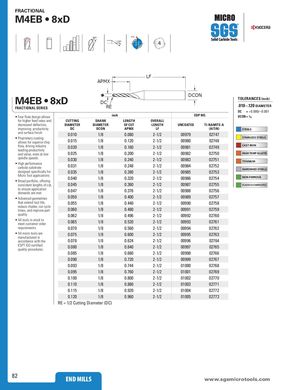

M4EB 8xD
30° POS 15° 4
| LF | |||||||
| M4EB • 8 FRACTIONAL SERIES | xD | APMX DC RE | DCON | TOLERANCES(inc .010–.120DIAMET DC =+0.000/–0.00 | |||
| • Four flute design allows | inc | h | EDP | NO. | DCON =h6 | ||
| for higher feed rates and decreased deflection, improving productivity | CUTTING DIAMETER DC | SHANK DIAMETER DCON | LENGTH OF CUT APMX | OVERALL LENGTH LF | UNCOATED | TI-NAMITE-A (AlTiN) | STEELS |
| and surface finish. | 0.010 | 1/8 | 0.080 | 2-1/2 | 00979 | 02747 | STAINLESS STEELS |
| • Proprietary coating allows for superior chip | 0.015 | 1/8 | 0.120 | 2-1/2 | 00980 | 02748 | |
| flow, driving industry ldin rdtiit | 0.020 | 1/8 | 0.160 | 2-1/2 | 00981 | 02749 | CAST IRON |
| eag poucvy and value, even at low | 0.025 | 1/8 | 0.200 | 2-1/2 | 00982 | 02750 | HIGH TEMP ALLOYS |
| spindle speeds. | 0.030 | 1/8 | 0.240 | 2-1/2 | 00983 | 02751 | TITANIUM |
| • High performance carbide substrate | 0.031 | 1/8 | 0.248 | 2-1/2 | 00984 | 02752 | HARDENED STEELS |
| designed specifically for Mi Tl lii | 0.035 | 1/8 | 0.280 | 2-1/2 | 00985 | 02753 | |
| cro oo appcatons. • Broad portfolio offering | 0.040 | 1/8 | 0.320 | 2-1/2 | 00986 | 02754 | NON-FERROUS |
| , consistent lengths of cut, | 0.045 | 1/8 | 0.360 | 2-1/2 | 00987 | 02755 | PLASTICS/COMPOSITES |
| to ensure application demands are met. | 0.047 | 1/8 | 0.376 | 2-1/2 | 00988 | 02756 | |
| • Advanced geometries | 0.050 | 1/8 | 0.400 | 2-1/2 | 00989 | 02757 | |
| that extend tool life, dhtttl | 0.055 | 1/8 | 0.440 | 2-1/2 | 00990 | 02758 | |
| reuce caer, cu cyce times, and improve part | 0.060 | 1/8 | 0.480 | 2-1/2 | 00991 | 02759 | |
| quality. | 0.062 | 1/8 | 0.496 | 2-1/2 | 00992 | 02760 | |
| • All tools in stock to meet customer order | 0.065 | 1/8 | 0.520 | 2-1/2 | 00993 | 02761 | |
| requirements. | 0.070 | 1/8 | 0.560 | 2-1/2 | 00994 | 02762 | |
| • All micro tools are manufactured in | 0.075 | 1/8 | 0.600 | 2-1/2 | 00995 | 02763 | |
| accordance with the | 0.078 | 1/8 | 0.624 | 2-1/2 | 00996 | 02764 | |
| KSPT ISO certified qualit procedures | 0.080 | 1/8 | 0.640 | 2-1/2 | 00997 | 02765 | |
| y . | 0.085 | 1/8 | 0.680 | 2-1/2 | 00998 | 02766 | |
| 0.090 | 1/8 | 0.720 | 2-1/2 | 00999 | 02767 | ||
| 0.093 | 1/8 | 0.744 | 2-1/2 | 01000 | 02768 | ||
| 0.095 | 1/8 | 0.760 | 2-1/2 | 01001 | 02769 | ||
| 0.100 | 1/8 | 0.800 | 2-1/2 | 01002 | 02770 | ||
| 0.110 | 1/8 | 0.880 | 2-1/2 | 01003 | 02771 | ||
| 0.115 | 1/8 | 0.920 | 2-1/2 | 01004 | 02772 | ||
| 0.120 | 1/8 | 0.960 | 2-1/2 | 01005 | 02773 |
RE = 1/2 Cutting Diameter (DC)
