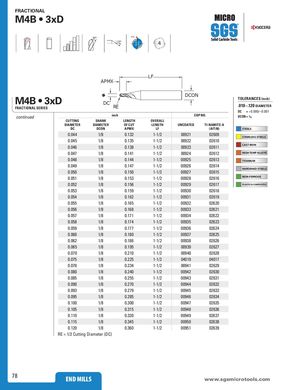

30° POS 15° 4
| LF | |
| DCON |
| M4B • 3xD | DC APMX | DCON | TOLERANCES(inc | |||
| FRACTIONAL SERIES | R | E | .010–.120DIAMET DC =+0.000/–0.00 | |||
| continued | inc | h | EDP | NO. | DCON =h6 | |
| CUTTING DIAMETER DC | SHANK DIAMETER DCON | LENGTH OF CUT APMX | OVERALL LENGTH LF | UNCOATED | TI-NAMITE-A (AlTiN) | STEELS |
| 0.044 | 1/8 | 0.132 | 1-1/2 | 00921 | 02609 | STAINLESS STEELS |
| 0.045 | 1/8 | 0.135 | 1-1/2 | 00922 | 02610 | |
| 0.046 | 1/8 | 0.138 | 1-1/2 | 00923 | 02611 | CAST IRON |
| 0.047 | 1/8 | 0.141 | 1-1/2 | 00924 | 02612 | HIGH TEMP ALLOYS |
| 0.048 | 1/8 | 0.144 | 1-1/2 | 00925 | 02613 | TITANIUM |
| 0.049 | 1/8 | 0.147 | 1-1/2 | 00926 | 02614 | HARDENED STEELS |
| 0.050 | 1/8 | 0.150 | 1-1/2 | 00927 | 02615 | |
| 0.051 | 1/8 | 0.153 | 1-1/2 | 00928 | 02616 | NON-FERROUS |
| 0.052 | 1/8 | 0.156 | 1-1/2 | 00929 | 02617 | PLASTICS/COMPOSITES |
| 0.053 | 1/8 | 0.159 | 1-1/2 | 00930 | 02618 | |
| 0.054 | 1/8 | 0.162 | 1-1/2 | 00931 | 02619 | |
| 0.055 | 1/8 | 0.165 | 1-1/2 | 00932 | 02620 | |
| 0.056 | 1/8 | 0.168 | 1-1/2 | 00933 | 02621 | |
| 0.057 | 1/8 | 0.171 | 1-1/2 | 00934 | 02622 | |
| 0.058 | 1/8 | 0.174 | 1-1/2 | 00935 | 02623 | |
| 0.059 | 1/8 | 0.177 | 1-1/2 | 00936 | 02624 | |
| 0.060 | 1/8 | 0.180 | 1-1/2 | 00937 | 02625 | |
| 0.062 | 1/8 | 0.186 | 1-1/2 | 00938 | 02626 | |
| 0.065 | 1/8 | 0.195 | 1-1/2 | 00939 | 02627 | |
| 0.070 | 1/8 | 0.210 | 1-1/2 | 00940 | 02628 | |
| 0.075 | 1/8 | 0.225 | 1-1/2 | 04019 | 04017 | |
| 0.078 | 1/8 | 0.234 | 1-1/2 | 00941 | 02629 | |
| 0.080 | 1/8 | 0.240 | 1-1/2 | 00942 | 02630 | |
| 0.085 | 1/8 | 0.255 | 1-1/2 | 00943 | 02631 | |
| 0.090 | 1/8 | 0.270 | 1-1/2 | 00944 | 02632 | |
| 0.093 | 1/8 | 0.279 | 1-1/2 | 00945 | 02633 | |
| 0.095 | 1/8 | 0.285 | 1-1/2 | 00946 | 02634 | |
| 0.100 | 1/8 | 0.300 | 1-1/2 | 00947 | 02635 | |
| 0.105 | 1/8 | 0.315 | 1-1/2 | 00948 | 02636 | |
| 0.110 | 1/8 | 0.330 | 1-1/2 | 00949 | 02637 | |
| 0.115 | 1/8 | 0.345 | 1-1/2 | 00950 | 02638 | |
| 0.120 | 1/8 | 0.360 | 1-1/2 | 00951 | 02639 |
RE = 1/2 Cutting Diameter (DC)
