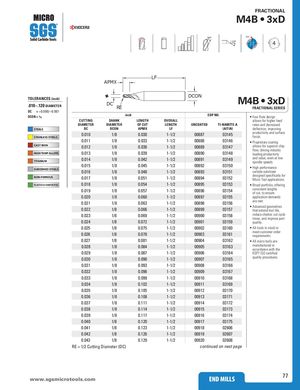

FRACTIONAL M4B • 3xD POS 30° 15° 4 LF APMX DCON TOLERANCES (inch) .010–.120 DIAMETER DC RE M4B • 3xDFRACTIONAL SERIES DC = +0.000/–0.001 DCON = h 6 inch EDP NO. • Four flute design CUTTING SHANK LENGTH OVERALL allows for higher feed DIAMETER DIAMETER OF CUT LENGTH UNCOATED TI-NAMITE-A rates and decreased STEELS DC DCON APMX LF (AlTiN) deflection, improving productivity and surface 0.010 1/8 0.030 1-1/2 00887 03145 finish. STAINLESS STEELS 0.011 1/8 0.033 1-1/2 00888 03146 • Proprietary coating CAST IRON allows for superior chip 0.012 1/8 0.036 1-1/2 00889 03147 flow, driving industry HIGH TEMP ALLOYS 0.013 1/8 0.039 1-1/2 00890 03148 leading productivity 0.014 1/8 0.042 1-1/2 00891 03149 and value, even at low TITANIUM spindle speeds. 0.015 1/8 0.045 1-1/2 00892 03150 • High performance HARDENED STEELS 0.016 1/8 0.048 1-1/2 00893 03151 carbide substrate designed specifically for NON-FERROUS 0.017 1/8 0.051 1-1/2 00894 03152 Micro Tool applications. PLASTICS/COMPOSITES 0.018 1/8 0.054 1-1/2 00895 03153 • Broad portfolio, offering consistent lengths 0.019 1/8 0.057 1-1/2 00896 03154 of cut, to ensure 0.020 1/8 0.060 1-1/2 00897 03155 application demands are met. 0.021 1/8 0.063 1-1/2 00898 03156 • Advanced geometries 0.022 1/8 0.066 1-1/2 00899 03157 that extend tool life, 0.023 1/8 0.069 1-1/2 00900 03158 reduce chatter, cut cycle times, and improve part 0.024 1/8 0.072 1-1/2 00901 03159 quality. 0.025 1/8 0.075 1-1/2 00902 03160 • All tools in stock to meet customer order 0.026 1/8 0.078 1-1/2 00903 03161 requirements. 0.027 1/8 0.081 1-1/2 00904 03162 • All micro tools are 0.028 1/8 0.084 1-1/2 00905 03163 manufactured in accordance with the 0.029 1/8 0.087 1-1/2 00906 03164 KSPT ISO certified quality procedures. 0.030 1/8 0.090 1-1/2 00907 03165 0.031 1/8 0.093 1-1/2 00908 03166 0.032 1/8 0.096 1-1/2 00909 03167 0.033 1/8 0.099 1-1/2 00910 03168 0.034 1/8 0.102 1-1/2 00911 03169 0.035 1/8 0.105 1-1/2 00912 03170 0.036 1/8 0.108 1-1/2 00913 03171 0.037 1/8 0.111 1-1/2 00914 03172 0.038 1/8 0.114 1-1/2 00915 03173 0.039 1/8 0.117 1-1/2 00916 03174 0.040 1/8 0.120 1-1/2 00917 03175 0.041 1/8 0.123 1-1/2 00918 02606 0.042 1/8 0.126 1-1/2 00919 02607 0.043 1/8 0.129 1-1/2 00920 02608 RE = 1/2 Cutting Diameter (DC) continued on next page 77 END MILLS www.sgsmicrotools.com END MILLS
