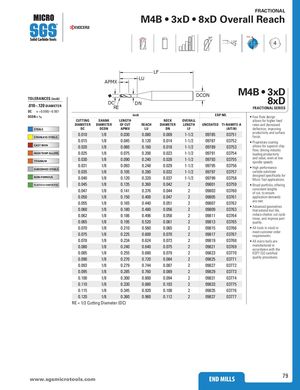

FRACTIONAL M4B • 3xD • 8xD Overall Reach POS 30° 15° 4 LF LU APMX DCON M4B • 3xD TOLERANCES (inch) .010–.120 DIAMETER DC RE DN 8xD FRACTIONAL SERIES DC = +0.000/–0.001 DCON = h 6 inch EDP NO. • Four flute design CUTTING SHANK LENGTH NECK OVERALL allows for higher feed DIAMETER DIAMETER OF CUT REACH DIAMETER LENGTH UNCOATED TI-NAMITE-A rates and decreased STEELS DC DCON APMX LU DN LF (AlTiN) deflection, improving productivity and surface 0.010 1/8 0.030 0.080 0.009 1-1/2 09785 03751 finish. STAINLESS STEELS 0.015 1/8 0.045 0.120 0.014 1-1/2 09787 03752 • Proprietary coating CAST IRON allows for superior chip 0.020 1/8 0.060 0.160 0.018 1-1/2 09789 03753 flow, driving industry HIGH TEMP ALLOYS 0.025 1/8 0.075 0.200 0.023 1-1/2 09791 03754 leading productivity 0.030 1/8 0.090 0.240 0.028 1-1/2 09793 03755 and value, even at low TITANIUM spindle speeds. 0.031 1/8 0.093 0.248 0.029 1-1/2 09795 03756 • High performance HARDENED STEELS 0.035 1/8 0.105 0.280 0.032 1-1/2 09797 03757 carbide substrate designed specifically for NON-FERROUS 0.040 1/8 0.120 0.320 0.037 1-1/2 09799 03758 Micro Tool applications. PLASTICS/COMPOSITES 0.045 1/8 0.135 0.360 0.042 2 09801 03759 • Broad portfolio, offering consistent lengths 0.047 1/8 0.141 0.376 0.044 2 09803 03760 of cut, to ensure 0.050 1/8 0.150 0.400 0.047 2 09805 03761 application demands are met. 0.055 1/8 0.165 0.440 0.051 2 09807 03762 • Advanced geometries 0.060 1/8 0.180 0.480 0.056 2 09809 03763 that extend tool life, 0.062 1/8 0.186 0.496 0.058 2 09811 03764 reduce chatter, cut cycle times, and improve part 0.065 1/8 0.195 0.520 0.061 2 09813 03765 quality. 0.070 1/8 0.210 0.560 0.065 2 09815 03766 • All tools in stock to meet customer order 0.075 1/8 0.225 0.600 0.070 2 09817 03767 requirements. 0.078 1/8 0.234 0.624 0.073 2 09819 03768 • All micro tools are 0.080 1/8 0.240 0.640 0.075 2 09821 03769 manufactured in accordance with the 0.085 1/8 0.255 0.680 0.079 2 09823 03770 KSPT ISO certified quality procedures. 0.090 1/8 0.270 0.720 0.084 2 09825 03771 0.093 1/8 0.279 0.744 0.087 2 09827 03772 0.095 1/8 0.285 0.760 0.089 2 09829 03773 0.100 1/8 0.300 0.800 0.094 2 09831 03774 0.110 1/8 0.330 0.880 0.103 2 09833 03775 0.115 1/8 0.345 0.920 0.108 2 09835 03776 0.120 1/8 0.360 0.960 0.112 2 09837 03777 RE = 1/2 Cutting Diameter (DC) 79 END MILLS www.sgsmicrotools.com END MILLS
