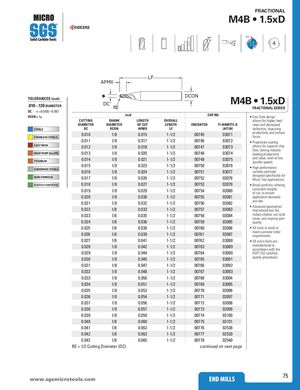

FRACTIONAL M4B • 1.5xD POS 30° 15° 4 LF APMX DCON TOLERANCES (inch) .010–.120 DIAMETER DC RE M4B • 1.5xD FRACTIONAL SERIES DC = +0.000/–0.001 DCON = h 6 inch EDP NO. • Four flute design CUTTING SHANK LENGTH OVERALL allows for higher feed DIAMETER DIAMETER OF CUT LENGTH UNCOATED TI-NAMITE-A rates and decreased STEELS DC DCON APMX LF (AlTiN) deflection, improving productivity and surface 0.010 1/8 0.015 1-1/2 00745 03071 finish. STAINLESS STEELS 0.011 1/8 0.017 1-1/2 00746 03072 • Proprietary coating CAST IRON allows for superior chip 0.012 1/8 0.018 1-1/2 00747 03073 flow, driving industry HIGH TEMP ALLOYS 0.013 1/8 0.020 1-1/2 00748 03074 leading productivity 0.014 1/8 0.021 1-1/2 00749 03075 and value, even at low TITANIUM spindle speeds. 0.015 1/8 0.023 1-1/2 00750 03076 • High performance HARDENED STEELS 0.016 1/8 0.024 1-1/2 00751 03077 carbide substrate designed specifically for NON-FERROUS 0.017 1/8 0.026 1-1/2 00752 03078 Micro Tool applications. PLASTICS/COMPOSITES 0.018 1/8 0.027 1-1/2 00753 03079 • Broad portfolio, offering consistent lengths 0.019 1/8 0.029 1-1/2 00754 03080 of cut, to ensure 0.020 1/8 0.030 1-1/2 00755 03081 application demands are met. 0.021 1/8 0.032 1-1/2 00756 03082 • Advanced geometries 0.022 1/8 0.033 1-1/2 00757 03083 that extend tool life, 0.023 1/8 0.035 1-1/2 00758 03084 reduce chatter, cut cycle times, and improve part 0.024 1/8 0.036 1-1/2 00759 03085 quality. 0.025 1/8 0.038 1-1/2 00760 03086 • All tools in stock to meet customer order 0.026 1/8 0.039 1-1/2 00761 03087 requirements. 0.027 1/8 0.041 1-1/2 00762 03088 • All micro tools are 0.028 1/8 0.042 1-1/2 00763 03089 manufactured in accordance with the 0.029 1/8 0.044 1-1/2 00764 03090 KSPT ISO certified quality procedures. 0.030 1/8 0.045 1-1/2 00765 03091 0.031 1/8 0.047 1-1/2 00766 03092 0.032 1/8 0.048 1-1/2 00767 03093 0.033 1/8 0.050 1-1/2 00768 03094 0.034 1/8 0.051 1-1/2 00769 03095 0.035 1/8 0.053 1-1/2 00770 03096 0.036 1/8 0.054 1-1/2 00771 03097 0.037 1/8 0.056 1-1/2 00772 03098 0.038 1/8 0.057 1-1/2 00773 03099 0.039 1/8 0.059 1-1/2 00774 03100 0.040 1/8 0.060 1-1/2 00775 03101 0.041 1/8 0.062 1-1/2 00776 02538 0.042 1/8 0.063 1-1/2 00777 02539 0.043 1/8 0.065 1-1/2 00778 02540 RE = 1/2 Cutting Diameter (DC) continued on next page 75 END MILLS www.sgsmicrotools.com END MILLS
