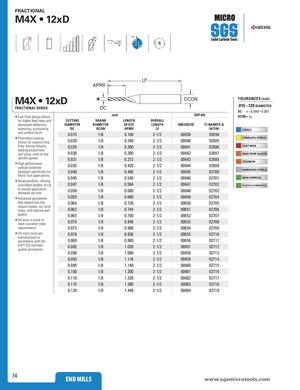

M4X 12xD
30° POS 15° 4
| LF | |||||||
| M4X • 12x | D | APMX | DCON | TOLERANCES(inch) | |||
| FRACTIONAL SERIES | DC | .015–.120DIAMETER DC =+0.000/–0.001 | |||||
| • Four flute design allows | inc | h | EDP | NO. | DCON =h6 | ||
| for higher feed rates and decreased deflection, improving productivity | CUTTING DIAMETER DC | SHANK DIAMETER DCON | LENGTH OF CUT APMX | OVERALL LENGTH LF | UNCOATED | TI-NAMITE-A (AlTiN) | STEELS |
| and surface finish. | 0.015 | 1/8 | 0.180 | 2-1/2 | 00639 | 02694 | |
| • Proprietary coating allows for superior chip | 0.020 | 1/8 | 0.240 | 2-1/2 | 00640 | 02695 | STAINLESS STEELS |
| flow, driving industry ldi dii | 0.025 | 1/8 | 0.300 | 2-1/2 | 00641 | 02696 | CAST IRON |
| eang prouctvty and value, even at low | 0.030 | 1/8 | 0.360 | 2-1/2 | 00642 | 02697 | HIGH TEMP ALLOYS |
| spindle speeds. | 0.031 | 1/8 | 0.372 | 2-1/2 | 00643 | 02698 | TITANIUM |
| • High performance carbide substrate | 0.035 | 1/8 | 0.420 | 2-1/2 | 00644 | 02699 | |
| designed specifically for | 0.040 | 1/8 | 0.480 | 2-1/2 | 00645 | 02700 | HARDENED STEELS |
| Micro Tool applications. • Broad ortfolio offerin | 0.045 | 1/8 | 0.540 | 2-1/2 | 00646 | 02701 | NON-FERROUS |
| p, g consistent lengths of cut, | 0.047 | 1/8 | 0.564 | 2-1/2 | 00647 | 02702 | PLASTICS/COMPOSITES |
| to ensure application demands are met. | 0.050 | 1/8 | 0.600 | 2-1/2 | 00648 | 02703 | |
| • Advanced geometries | 0.055 | 1/8 | 0.660 | 2-1/2 | 00649 | 02704 | |
| that extend tool life, | 0.060 | 1/8 | 0.720 | 2-1/2 | 00650 | 02705 | |
| reduce chatter, cut cycle times, and improve part | 0.062 | 1/8 | 0.744 | 2-1/2 | 00651 | 02706 | |
| quality. | 0.065 | 1/8 | 0.780 | 2-1/2 | 00652 | 02707 | |
| • All tools in stock to meet customer order | 0.070 | 1/8 | 0.840 | 2-1/2 | 00653 | 02708 | |
| requirements. | 0.075 | 1/8 | 0.900 | 2-1/2 | 00654 | 02709 | |
| • All micro tools are | 0.078 | 1/8 | 0.936 | 2-1/2 | 00655 | 02710 | |
| manufactured in accordance with the | 0.080 | 1/8 | 0.960 | 2-1/2 | 00656 | 02711 | |
| KSPT ISO certified ualit rocedures | 0.085 | 1/8 | 1.020 | 2-1/2 | 00657 | 02712 | |
| qy p. | 0.090 | 1/8 | 1.080 | 2-1/2 | 00658 | 02713 | |
| 0.093 | 1/8 | 1.116 | 2-1/2 | 00659 | 02714 | ||
| 0.095 | 1/8 | 1.140 | 2-1/2 | 00660 | 02715 | ||
| 0.100 | 1/8 | 1.200 | 2-1/2 | 00661 | 02716 | ||
| 0.110 | 1/8 | 1.320 | 2-1/2 | 00662 | 02717 | ||
| 0.115 | 1/8 | 1.380 | 2-1/2 | 00663 | 02718 | ||
| 0.120 | 1/8 | 1.440 | 2-1/2 | 00664 | 02719 |
