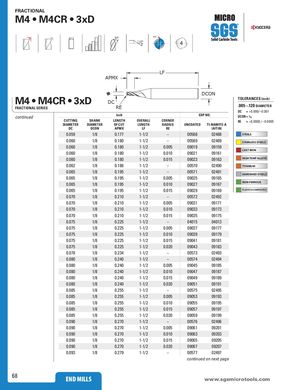

30° POS 15° 4
LF
| APMX | DCON | ||||||
| • 3x | D | DC RE | TOLERANCES(inc .005–.120DIAME DC =+0.000/–0.00 | ||||
| inch | ED | P NO. | DCON =h6 | ||||
| CUTTING DIAMETER DC | SHANK DIAMETER DCON | LENGTH OF CUT APMX | OVERALL LENGTH LF | CORNER RADIUS RE | UNCOATED | TI-NAMITE-A (AlTiN) | RE =+0.0000 / –0. |
| 0.059 | 1/8 | 0.177 | 1-1/2 | – | 00568 | 02488 | STEELS |
| 0.060 | 1/8 | 0.180 | 1-1/2 | – | 00569 | 02489 | STAINLESS STEELS |
| 0.060 | 1/8 | 0.180 | 1-1/2 | 0.005 | 09019 | 09159 | CAST IRON |
| 0.060 | 1/8 | 0.180 | 1-1/2 | 0.010 | 09021 | 09161 | |
| 0.060 | 1/8 | 0.180 | 1-1/2 | 0.015 | 09023 | 09163 | HIGH TEMP ALLOYS |
| 0.062 | 1/8 | 0.186 | 1-1/2 | – | 00570 | 02490 | TITANIUM |
| 0.065 | 1/8 | 0.195 | 1-1/2 | – | 00571 | 02491 | HARDENED STEELS |
| 0.065 | 1/8 | 0.195 | 1-1/2 | 0.005 | 09025 | 09165 | |
| 0.065 | 1/8 | 0.195 | 1-1/2 | 0.010 | 09027 | 09167 | NON-FERROUS |
| 0.065 | 1/8 | 0.195 | 1-1/2 | 0.015 | 09029 | 09169 | PLASTICS/COMPOSITES |
| 0.070 | 1/8 | 0.210 | 1-1/2 | – | 00572 | 02492 | |
| 0.070 | 1/8 | 0.210 | 1-1/2 | 0.005 | 09031 | 09171 | |
| 0.070 | 1/8 | 0.210 | 1-1/2 | 0.010 | 09033 | 09173 | |
| 0.070 | 1/8 | 0.210 | 1-1/2 | 0.015 | 09035 | 09175 | |
| 0.075 | 1/8 | 0.225 | 1-1/2 | – | 04015 | 04013 | |
| 0.075 | 1/8 | 0.225 | 1-1/2 | 0.005 | 09037 | 09177 | |
| 0.075 | 1/8 | 0.225 | 1-1/2 | 0.010 | 09039 | 09179 | |
| 0.075 | 1/8 | 0.225 | 1-1/2 | 0.015 | 09041 | 09181 | |
| 0.075 | 1/8 | 0.225 | 1-1/2 | 0.020 | 09043 | 09183 | |
| 0.078 | 1/8 | 0.234 | 1-1/2 | – | 00573 | 02493 | |
| 0.080 | 1/8 | 0.240 | 1-1/2 | – | 00574 | 02494 | |
| 0.080 | 1/8 | 0.240 | 1-1/2 | 0.005 | 09045 | 09185 | |
| 0.080 | 1/8 | 0.240 | 1-1/2 | 0.010 | 09047 | 09187 | |
| 0.080 | 1/8 | 0.240 | 1-1/2 | 0.015 | 09049 | 09189 | |
| 0.080 | 1/8 | 0.240 | 1-1/2 | 0.020 | 09051 | 09191 | |
| 0.085 | 1/8 | 0.255 | 1-1/2 | – | 00575 | 02495 | |
| 0.085 | 1/8 | 0.255 | 1-1/2 | 0.005 | 09053 | 09193 | |
| 0.085 | 1/8 | 0.255 | 1-1/2 | 0.010 | 09055 | 09195 | |
| 0.085 | 1/8 | 0.255 | 1-1/2 | 0.015 | 09057 | 09197 | |
| 0.085 | 1/8 | 0.255 | 1-1/2 | 0.020 | 09059 | 09199 | |
| 0.090 | 1/8 | 0.270 | 1-1/2 | – | 00576 | 02496 | |
| 0.090 | 1/8 | 0.270 | 1-1/2 | 0.005 | 09061 | 09201 | |
| 0.090 | 1/8 | 0.270 | 1-1/2 | 0.010 | 09063 | 09203 | |
| 0.090 | 1/8 | 0.270 | 1-1/2 | 0.015 | 09065 | 09205 | |
| 0.090 | 1/8 | 0.270 | 1-1/2 | 0.020 | 09067 | 09207 | |
| 0.093 | 1/8 | 0.279 | 1-1/2 | – | 00577 | 02497 |
FRACTIONAL SERIES
